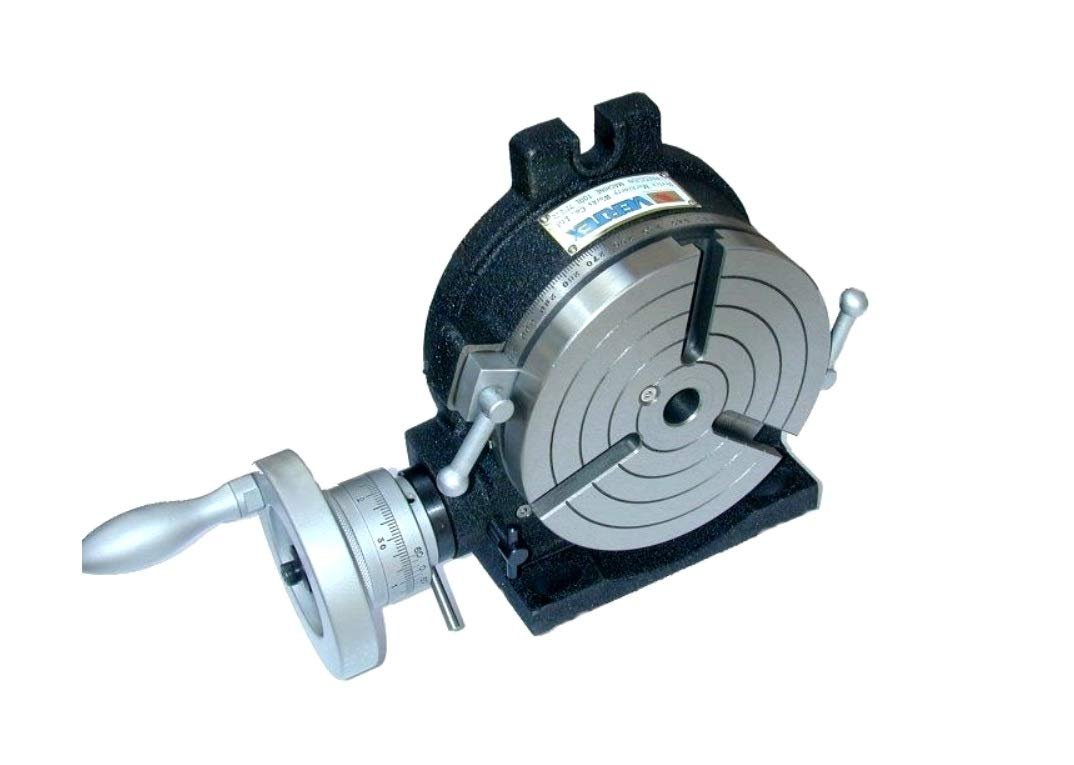

VERTEX 3900-2316 Horizontal/Vertical Rotary Table, 6″

Description

Price: $469.08
(as of Jun 02, 2025 08:44:28 UTC – Details)


6″ Horizontal/Vertical Rotary Table; Table Size: 6″; Overall Horizontal Height: 3. 1″; Overall Vertical Height: 7. 8″; Center Hole: 2MT; Vertical Center Height: 3. 9″; 3 T-Slots; T-Slot Size: . 43″; Weight: 28 lbs; 10 second Vernier reading; Gear ratio 90: 1; One rotation of handle equals 4° on collar. Vertex # HV-6
Product Dimensions ‏ : ‎ 10 x 14 x 10 inches; 27.78 Pounds
Item model number ‏ : ‎ 3900-2316
Date First Available ‏ : ‎ July 11, 2013
Manufacturer ‏ : ‎ Vertex
ASIN ‏ : ‎ B00V2YTKMW
Country of Origin ‏ : ‎ Taiwan

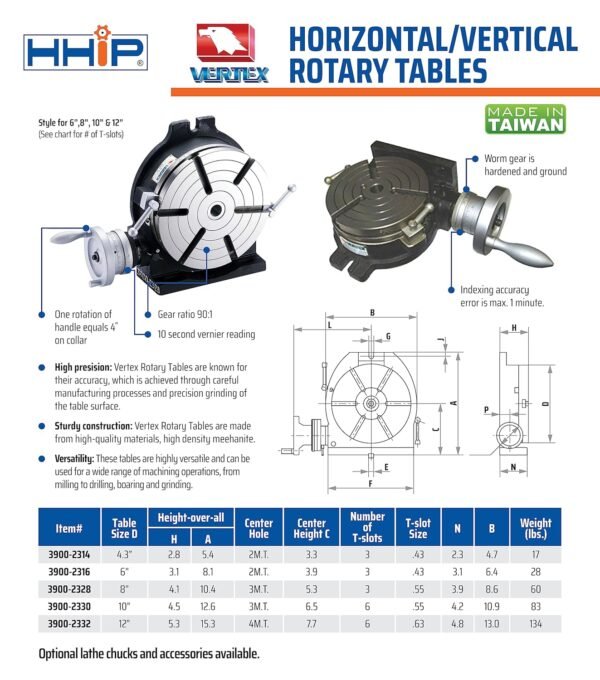

Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface.
These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks.
One rotation of handle equals 4° on collar. 10 second vernier reading with a gear ratio of 90 to 1.
Overall Horizontal Height is 3.1″ ~ Overall Vertical Height is 7.8″
Center Hole is 2MT ~ Vertical Center Height is 3.9″ ~ 3 T-Slots ~ T-Slot Size is .43″
