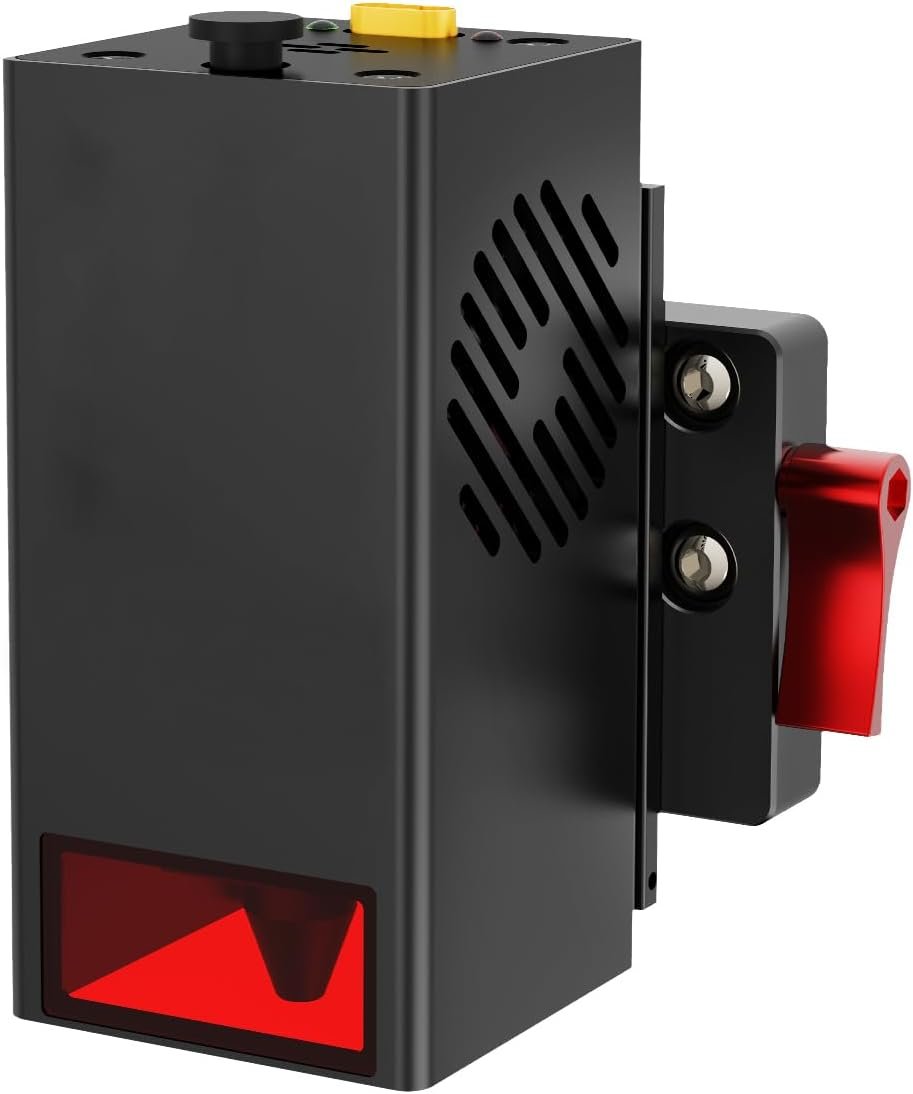

Twotrees Engraver Module, 20000mW Optical Power, High Accuracy Compression Focus Spot Head, Engraver Cutter Module for TTC450 Pro CNC Machine, Class 4

Description

Price: $409.00
(as of Jun 05, 2025 00:17:00 UTC – Details)


!!! Warnings: This power unit belongs to Class 4. Please wear protective goggles while operating the module.
Please avoid direct exposure to the eyes and skin.
In order to avoid unexpected accidents happens, please stay with the machine while the module is working.
Specifications Electric Output power: 96W
Optical Output power: 20000mW
Class: Class 4
Wave length: 450nm blue light
Recommend Focus Distance for Cutting: 8mm
Recommend Focus Distance for Engraving: 8mm
Input Voltage: 24V
Current: 2A
Service life: >10,000 hours
Working temperature: -10~70℃
Applications:
Engraving/cutting MDF/Balsa wood/plywood/wood/fabric/plastic/leather/EVA Foam/Anodized Aluminum/Coated metal surface
Package List 1x Power Module (Compatible with CNC machines TTC6050, TTC450 Pro)
1x Goggles
1x Light Shield
1x Positioning Block
2x Wires
1x Power Adapter

The 20W engraving module features a new technology “light beam compression”, which have excellent performance in engraving delicate jobs and details. It is able to cut 15mm woodboards easily. Original quality diode brings clear spot size of 130*145μm. Its lifetime up to 20,000 hours.
The focus distance is fixed by 40mm. The package includes a positioning block for easy focusing, it can be linked with the machine’s Z-axis motor to realise motor focusing. Electrical output: 96W, Optical output: 20000mW, Class level: Class 4.
The engraving module has an integrated air nozzle module that requires only the connection of an air assist and air hose for operation. This ensures the module make cutting deeper and get cleaner material edges.
It is made of aluminum which also functions as a large heatsink. With the aluminum body and cooling fan, heat dissipates faster. This ensures the module has a long service life.
APPLICABLE MATERIALS – It can cut MDF, acrylic, plywood, stainless steel, bamboo, leather, rubber, aluminum oxide, solid wood, etc. Only Compatible with CNC Router Machine TTC450 Pro, TTC6050.
