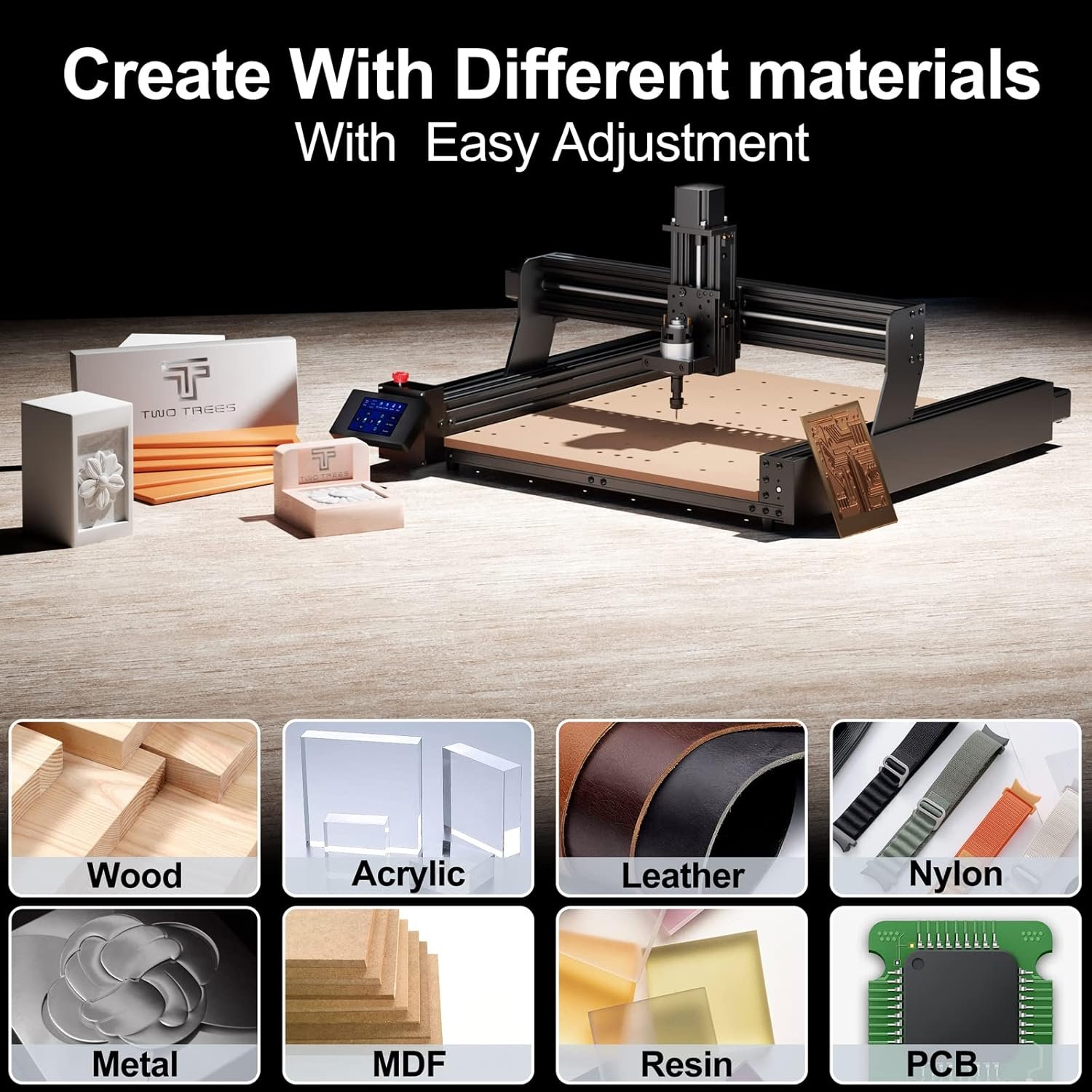

TTC450 CNC Router Machine,3-Axis Engraving All-Aluminum Milling Machine for Engraving, Cutting MDF, Acrylic, Solid Wood, Nylon, PCB, Carbon Fiberboard, Working Area 18.1 x 18.1 x 3.1In CNC Machine

Description

Price: $459.00
(as of May 31, 2025 06:13:00 UTC – Details)

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. 3-Axis All-Metal CNC Machine TTC450 Merchant Video

1 Support 500W Spindle

2 Support Trim Router

3 Support Extension Kits

1 Assemble Easily 2 Dashboard Control 3 Large Working Area

LED Offline Controller

Comes with TF card, which allows it to work offline via the smart dashboard.

Emergency Stop Switch

The emergency stop switch ensures safe operation; when the switch is switched on, it automatically resets the original operation.

High Precision

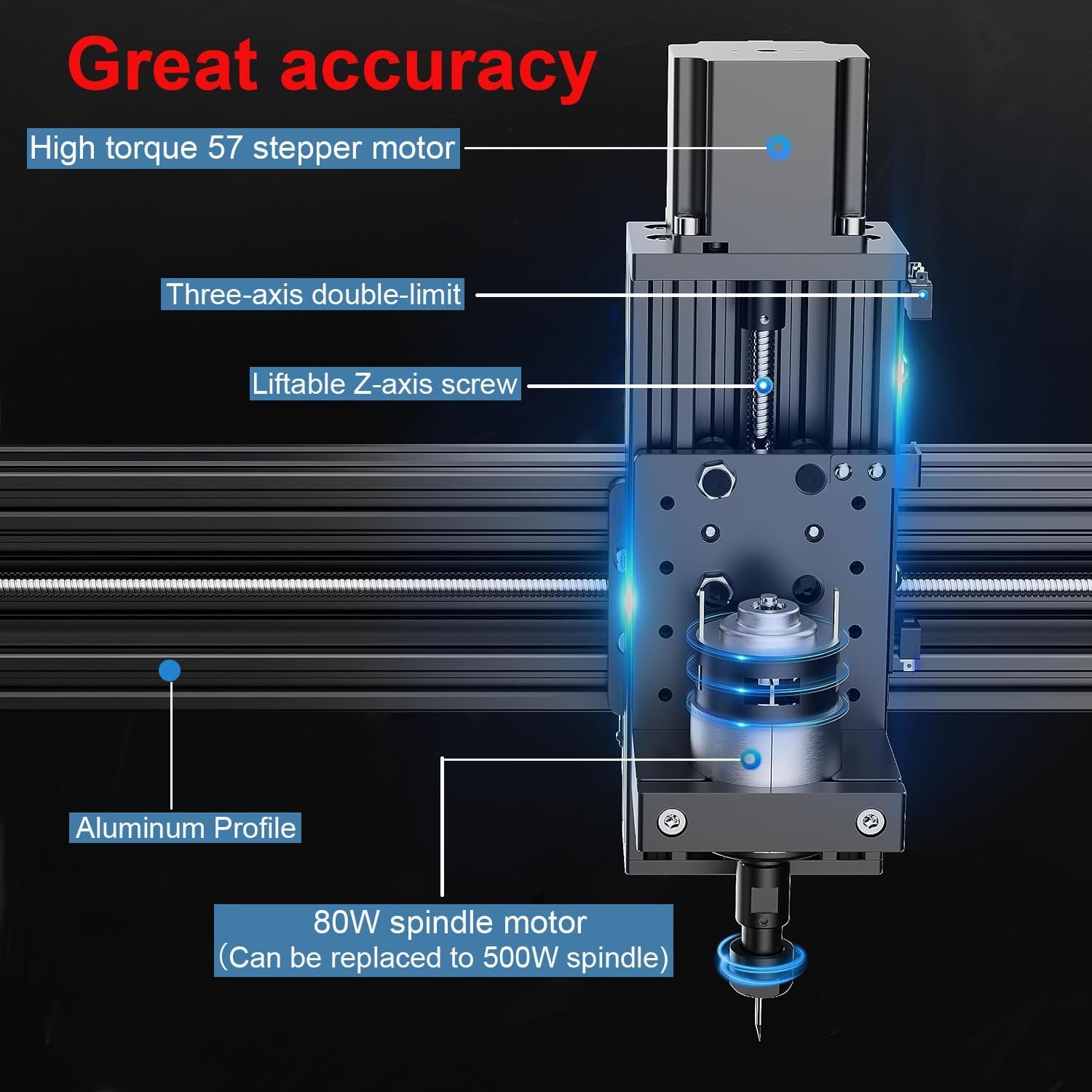

X, Y, Z three-axis spindle drive synchronization, Y-axis torque, precise positioning,engraving accuracy of up to 0.01 mm.

80W Spindle

The router machine is equipped with an 80W spindle. If the power is not sufficient, you can replace the spindle with a 500W spindle.

Chain Design

X, Y-axis cable guide adopt hidden drag chain, not easy to tangle, and more beautiful and simple.

AlI Aluminum Mount

The frame material of the router machine is made of 4080 aluminum, which makes it more solid and stable and not easy to move.

Clamp Sets

The clamp sets are available in two sizes: 1/8 inch and 6 mm ER11 clamps. You can purchase the right router bits for your needs.

Software Compatibility

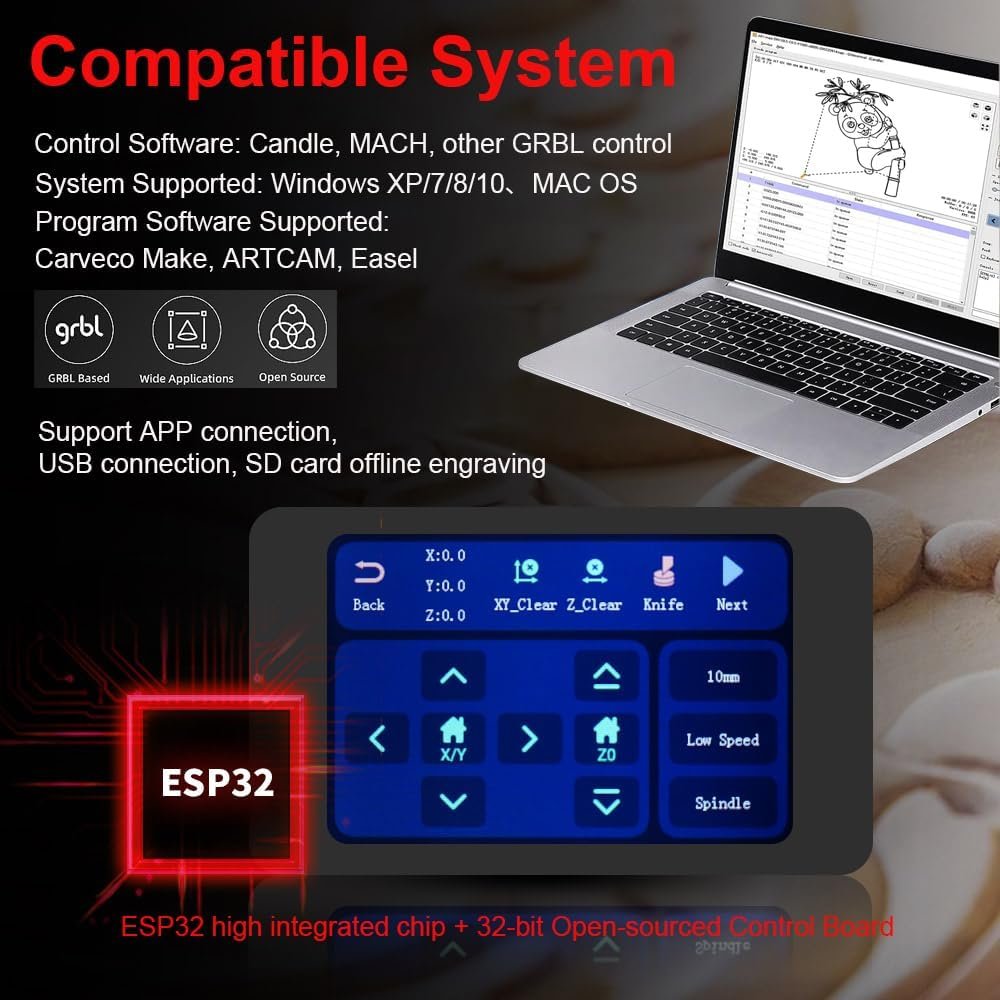

The CNC router machine is compatible with the GRBL software and supports systems Windows XP/7/8/10 and Mac OS.

Product Specification

Leadscrew Size & Type T8 2mm pitch, 4mm lead 5 start acme lead screw Engraving Size 460*460*80mm Engraving Speed 800mm/min Spindle 80W,8000RPM/500W,12000RPM Carving Material Plastic, soft aluminum, wood, acrylic, PVC, PVB and other soft materials Software Recognition Format NC, DXF, BMP, JPG, PNG, GCODE Control Panel ESP32 32-bit main control board Support CAM Software Candle, Carveco, Artcam, Easel Power Supply 24V,5A,120W

Efficient and Precise: TTC450 CNC router machine adopts ESP32 highly integrated chip with large memory, features low power consumption and ultra-fast processing speed. The high torque stepping motor is stable and engraves without heating. Double Y-axis and double screw synchronization, Y-axis torque is large, carving progress is higher.

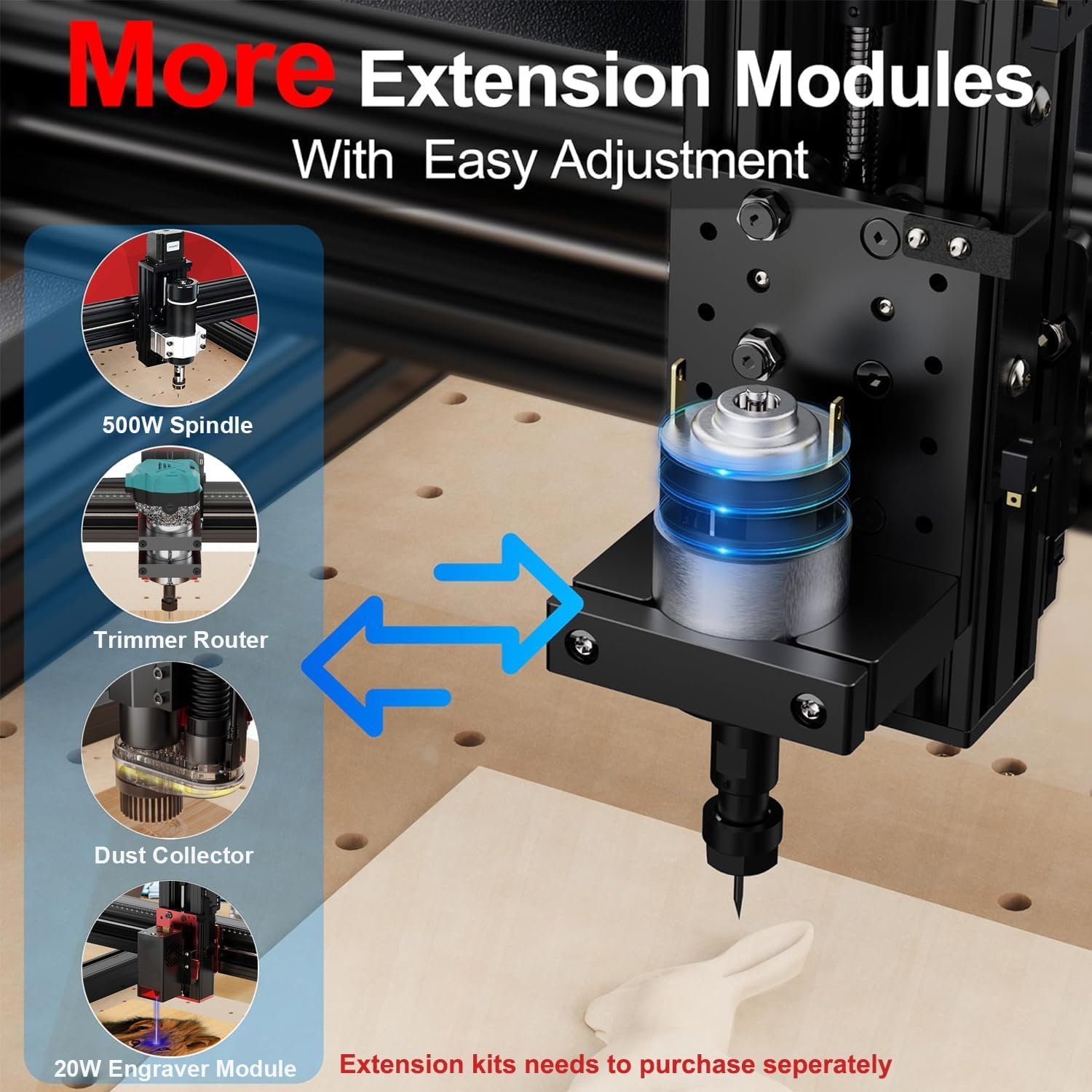

Wide Compatibility: TTC450 is equipped with 775 motor as standard, the fastest engraving speed is 800mm/min. 775 motor can be replaced with high power 500W spindle (purchased separately), which engraving faster and working longer. It also supports router trimmer, dust collector, 4th rotary axis, helping with a wide range of woodworking creations

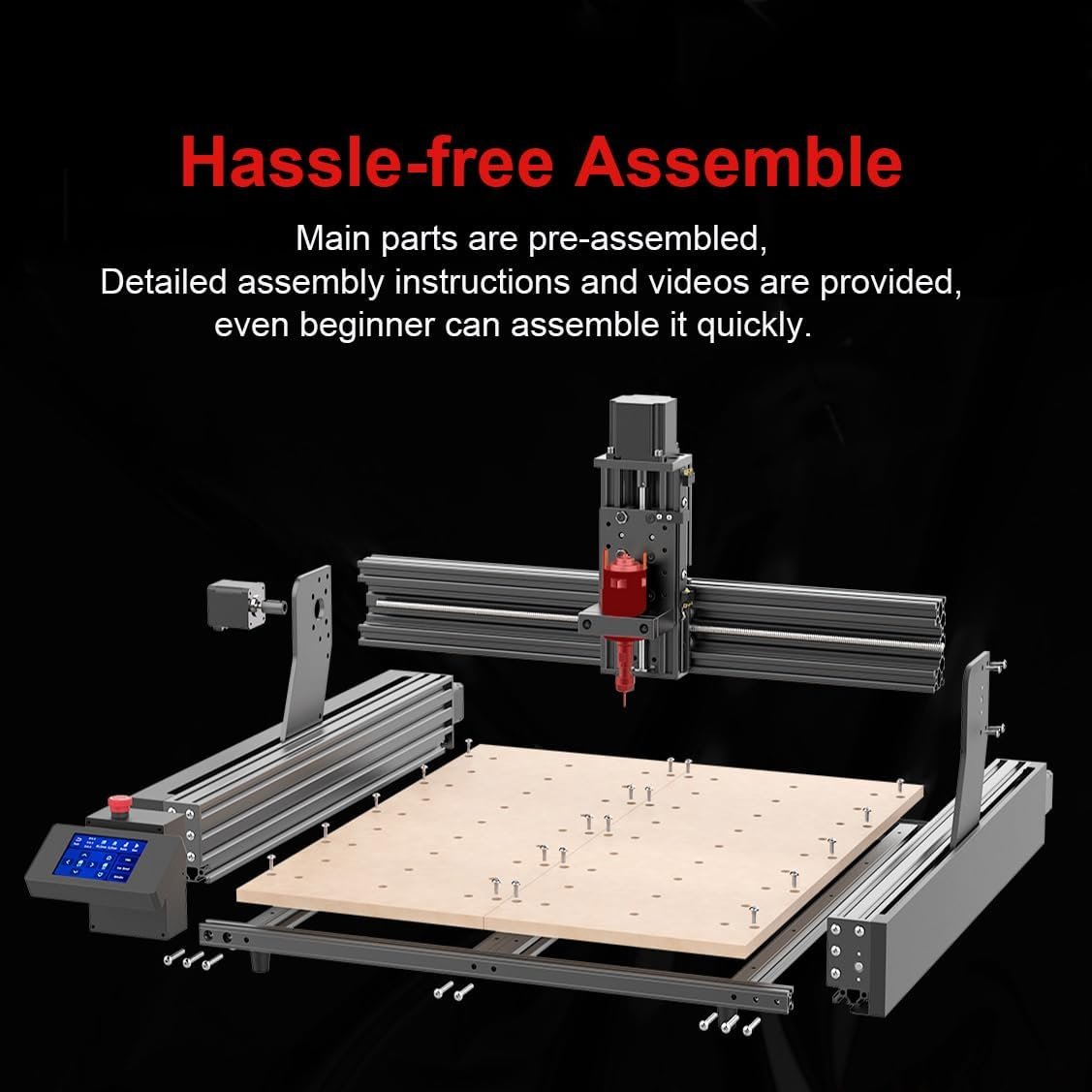

Solid Structure and Hassle-free Assembly: TTC450 is an All-Aluminum CNC router machine, stronger and more stable than other cnc machines. The appearance looks simple elegant and easy to maintenance. Main parts are pre-assembled, we provide detailed assembly manual and video, quick assembly even for beginners.
Safety Switch and Intuitive UI panel: XYZ 3-axis limit switch + emergency stop ensures safe operation. Spindle protection cover prevents scalding. Comes with SD card, which allows it to work offline via the smart dashboard. User interface operation easily.

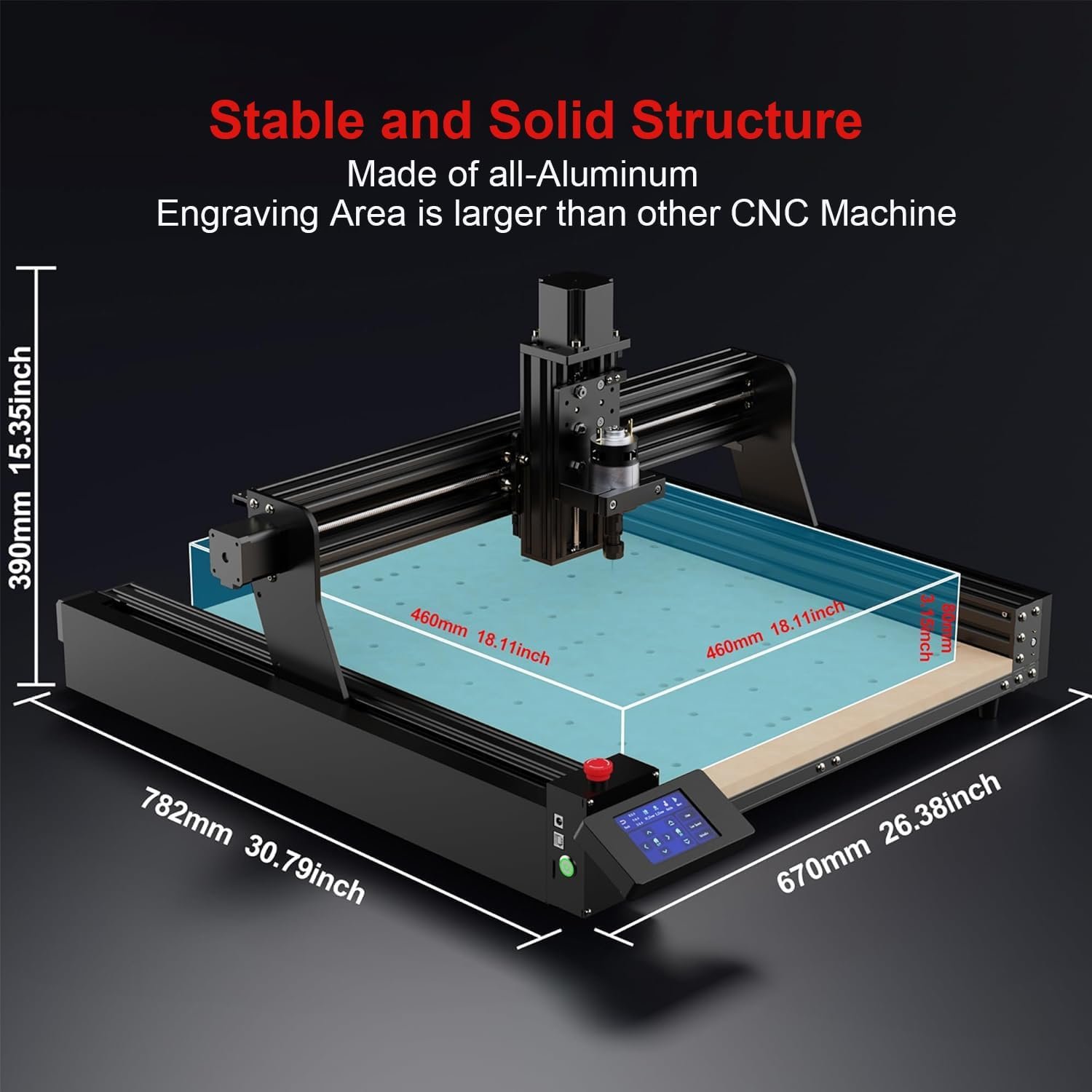

Large Engraving Area: The active working area is 18.1” x 18.1” x 3.14” (460 x 460 x 80mm). It is large enough for daily woodworking. Whether you’re a CNC beginner, a hobbyist, or a small business owner looking for enterprise-level commercial quality, this is an excellent choice.

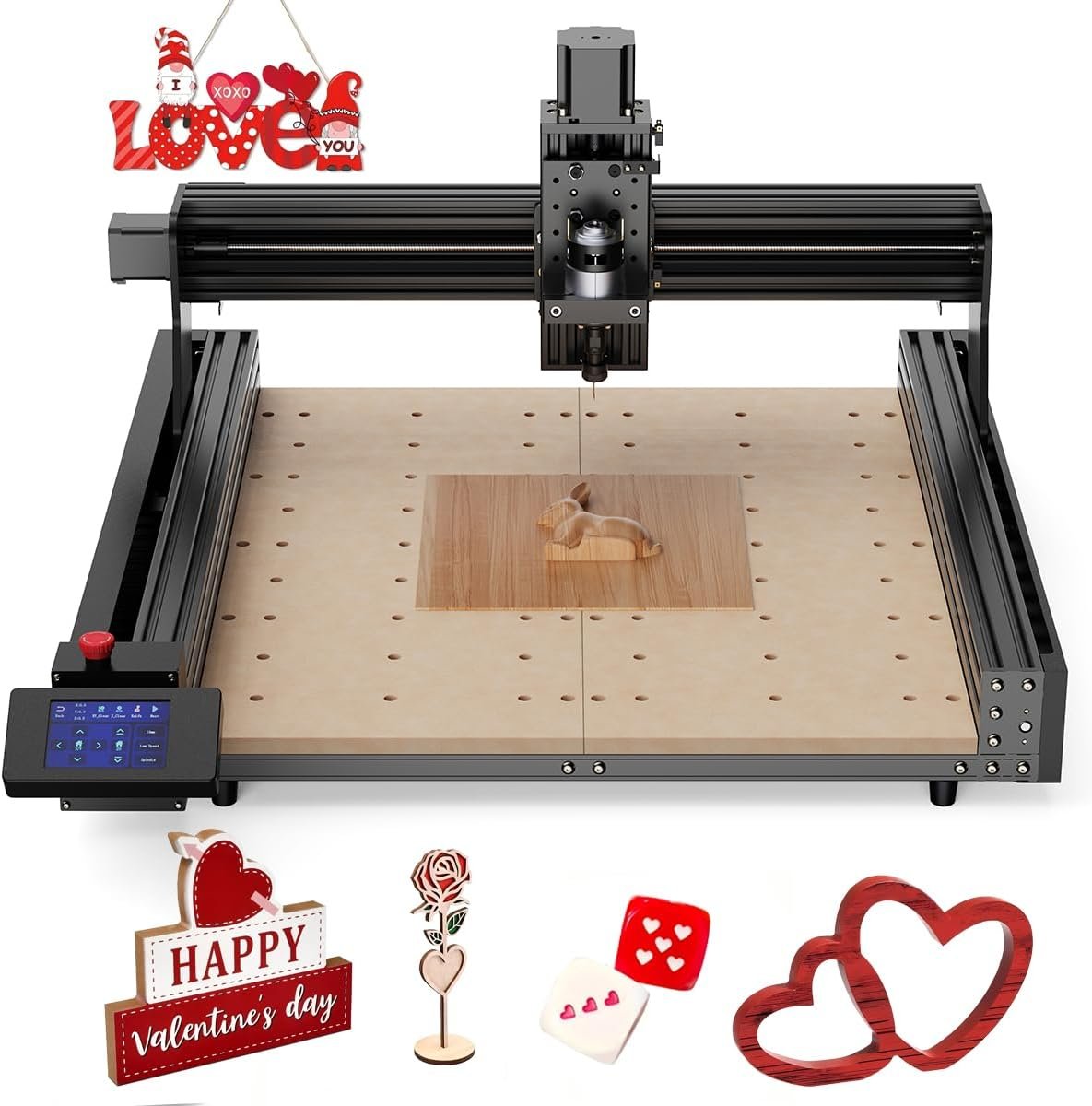

Halloween and Christmas are just around the corner, you can utilize TTC450 to engrave your design, this unique and varied design can help you get creative with your festival decorations and let the router machine fully realize its value.
