SPEEDWOLF 4.3″ Touch LCD Screen High Precision Fiber Optic Fusion Splicer Machine for SM, MM, NZ-DS, EDF Fibers with Optical Fiber Cleaver and Automatic Focus Function(FS37A)

Description

Price: $698.00
(as of Jun 04, 2025 19:17:17 UTC – Details)

Product Description

Shenzhen SPEEDWOLF Technology Co., Ltd. is a company specializing in the production of Optical Fiber Fusion Splicer, Optical Fiber Cleaver, OTDR, Light Source, Optical Power Meter, and Optical Fiber Fixture, and other optical communication instrument high-tech enterprises.

Company production of FS16,FS18,FS19,FS37 series fiber splicing machine and OTDR32F series OTDR is not only widely used in China Telecom, China Mobile, Unicom, radio and television major domestic telecommunications operators, but also exported to South America, Europe, Russia, Southeast Asia and Africa and other parts of the world.

SPEEDWOLF FS37A Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc. Splicing takes only 7 seconds, and heating takes only 15 seconds. The device is optimized for splicing under severe weather conditions, it is protected from stress and shock. It may be powered from 100/240V AC, or using a battery (included). where you may place the needed tools: a cleaver, a stripper, sleeves, etc.

Parameter

Splicing Fibers Type:SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series;Average Splice Loss:0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF);Return Loss:≥60dB;Splicing time: <7s;Heating time<15s (adjustable);Fiber Alignment: Core to Core Alignment by PAS technology;Electrodes Life:>5000 times, easy to replace electrodes;Power supply:Built in lithium battery 4000mAh 11.1V; AC adaptor: 100～240V,50/60Hz;DC adaptor: 12V voltageBattery Life:Cycling charge 300-500 times, easy to replace battery;300 cycles splicing and heatingFiber Image/ Magnification:X 300/130Language:English, Spanish;Weight:1.36KG/3LB;Size:208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.1(H)Inch

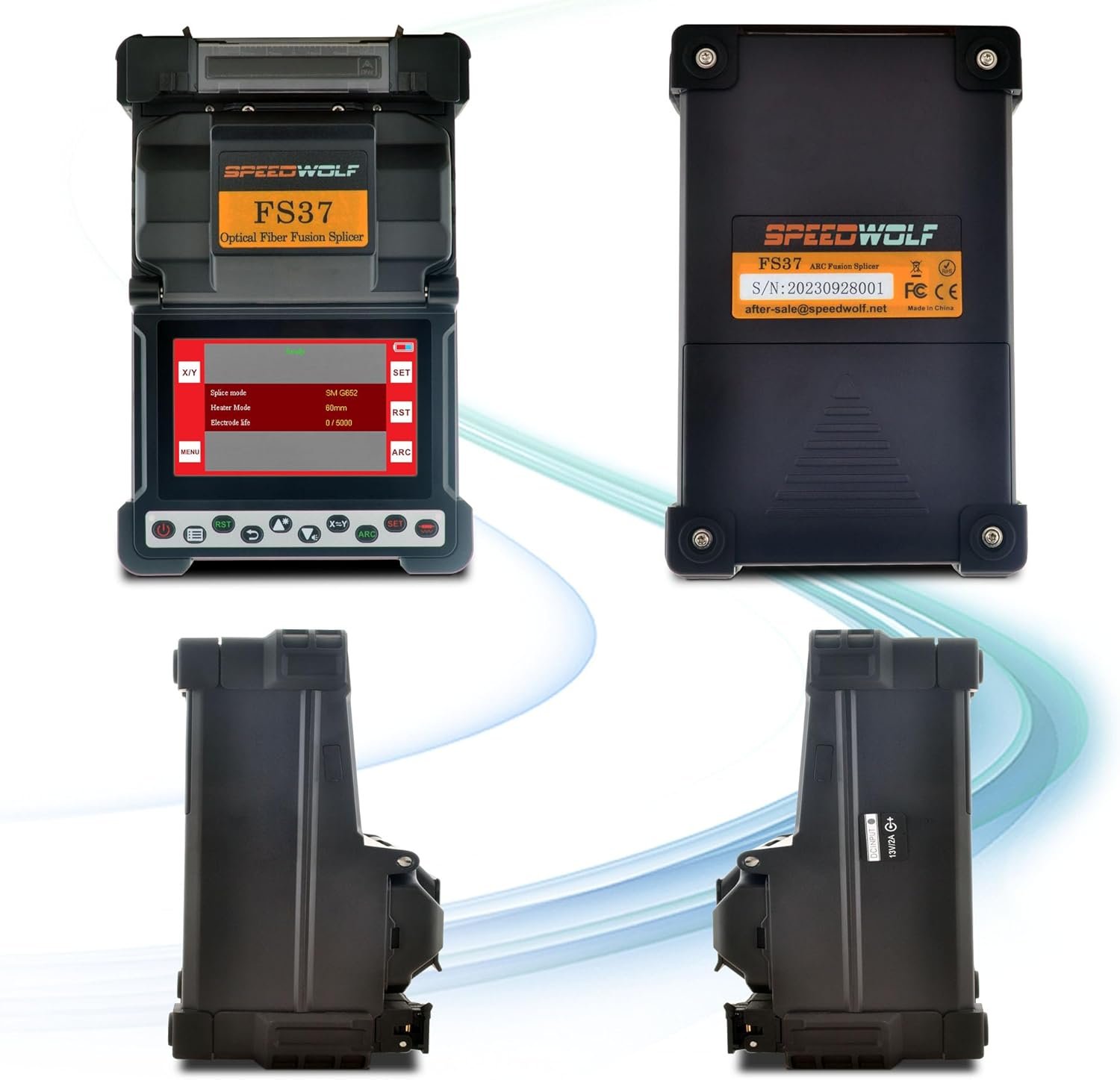

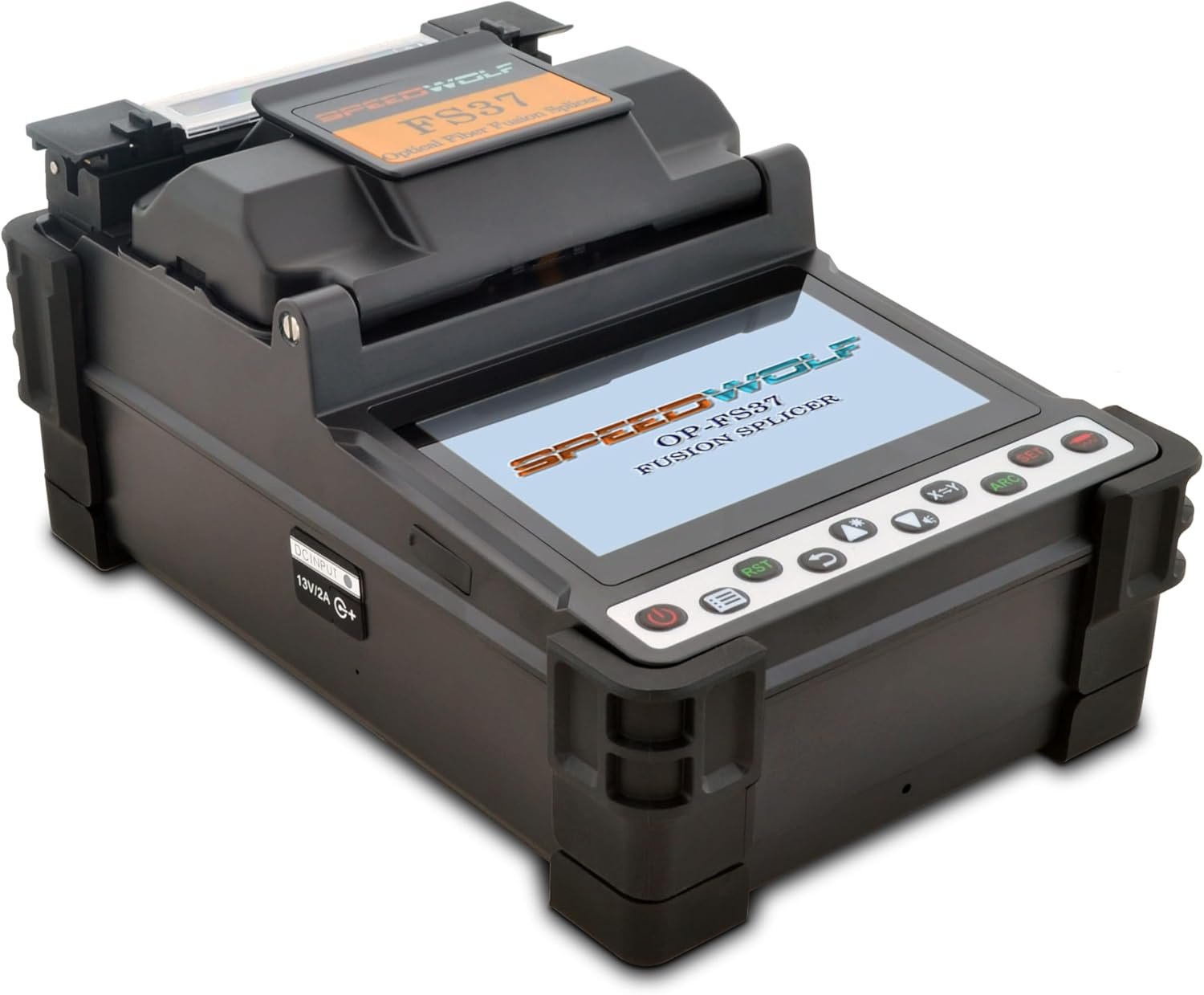

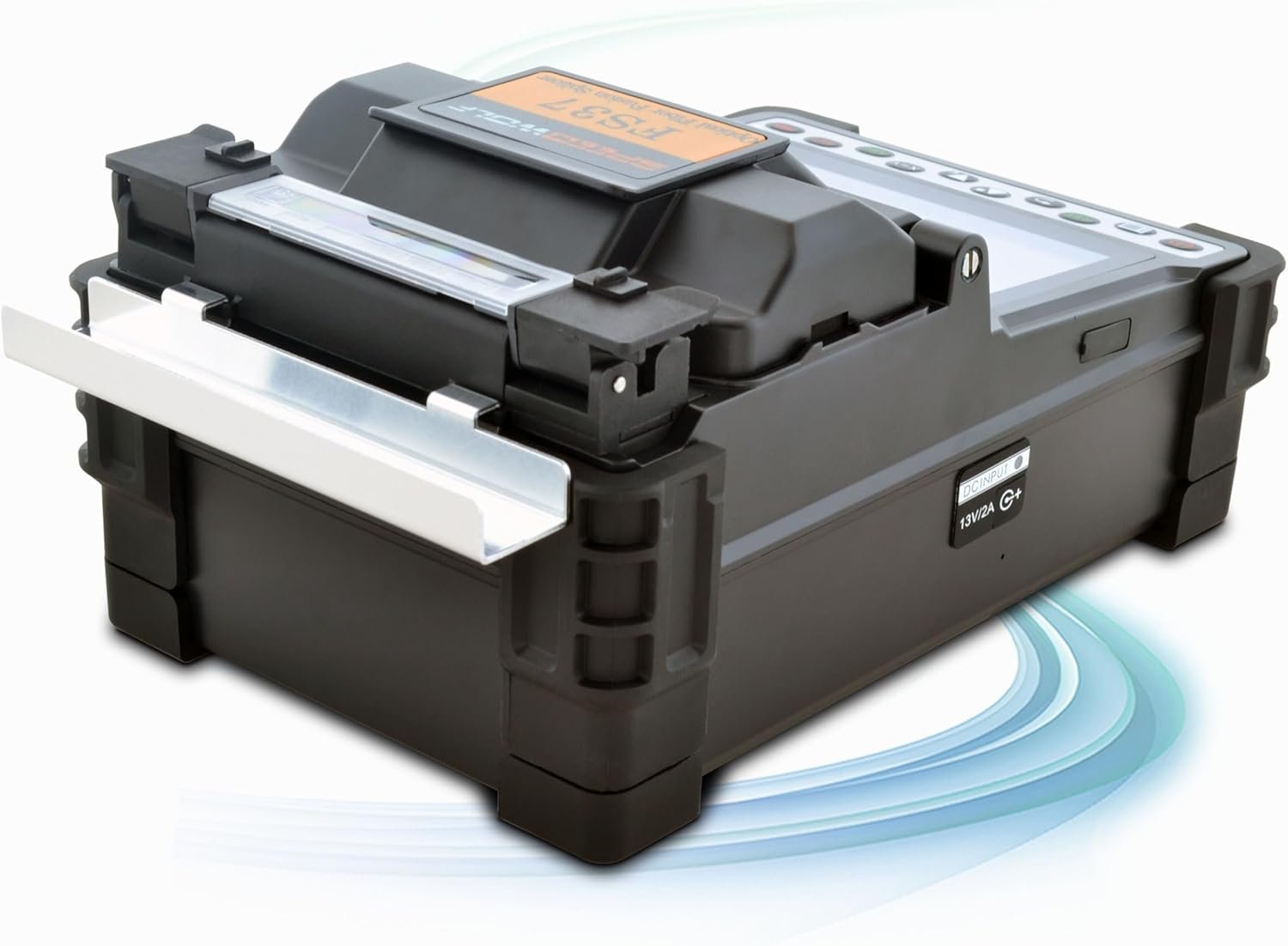

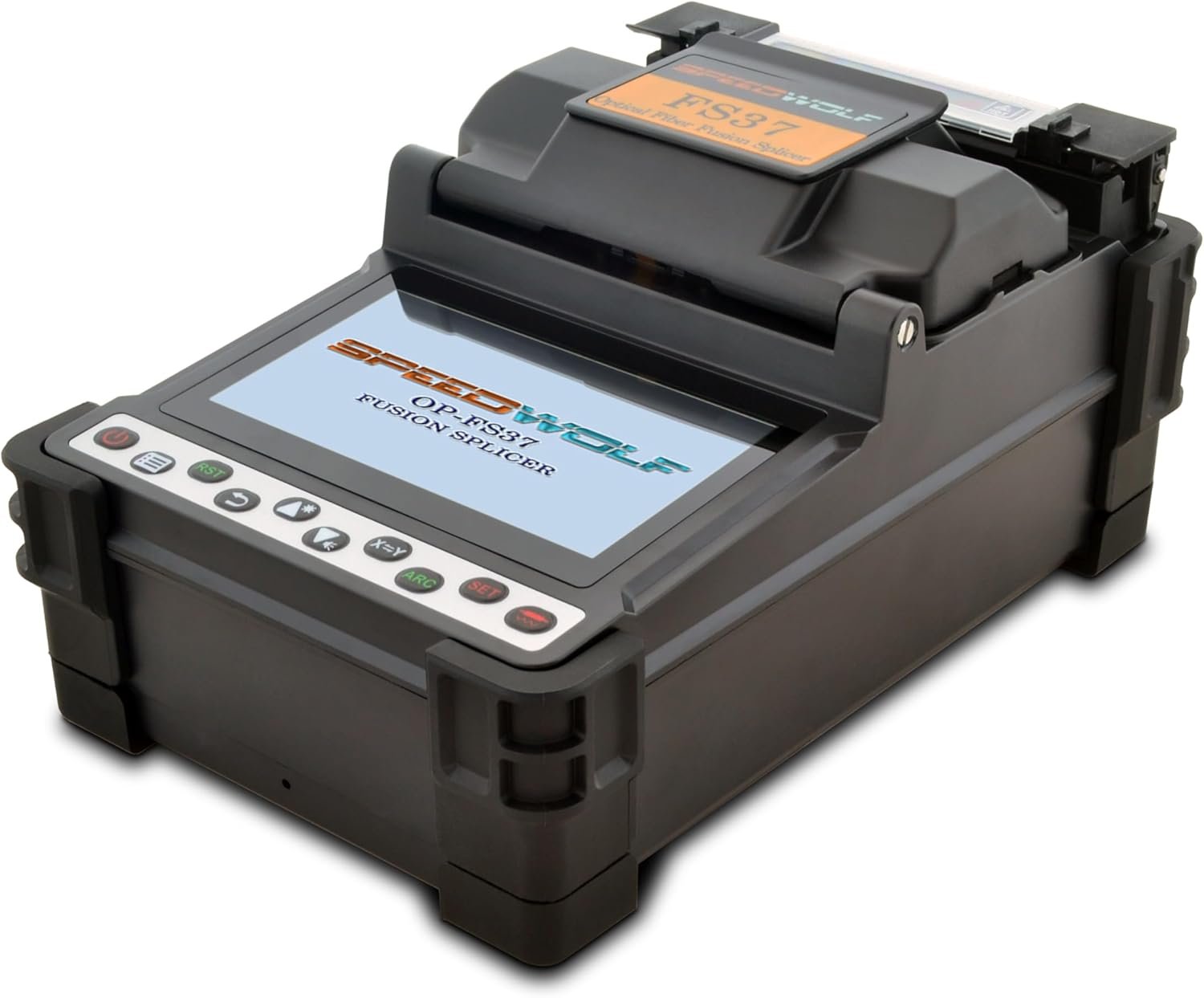

FS37 Core to Core Alignment Fusion Splicer

SPEEDWOLF FS37A fusion splicer adopt high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance.

Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.

Package Include

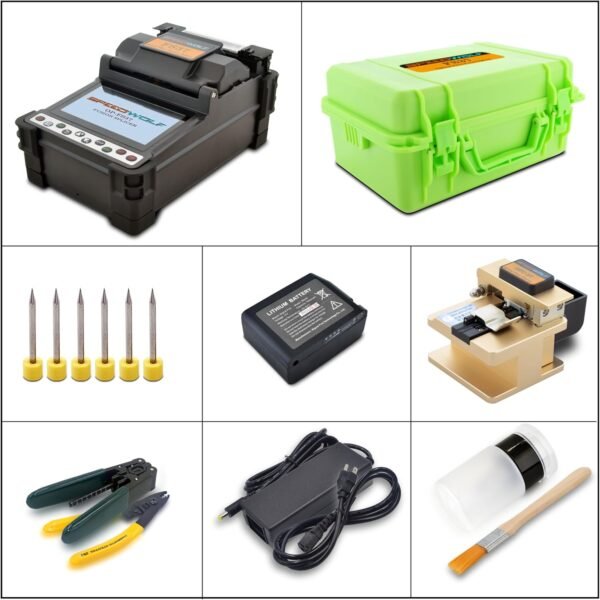

1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*100-240V AC adapter,1*11.1V 4000mah Li Battery,4*Spare Electrodes(Total 6 pcs),1*Cooling Tray,1*User Manual CD,1*Plastic Carrying Case

FS37 Optical Fiber Fusion Splicer Features

High-resolution true color Rotary outdoor-enhanced anti-glare 4.3 inch TFT LCD display.high contrast and vividness. Simultaneous display of X and Y axes.The advanced core to core fiber profile alignment system(PAS).Real time calibrating system,parameter needn’t be adjusted.X/Y axes were displayed meanwhile,300 X or Y view, 130 X and Y view.Reduced splicing time and Heating time–Only 7 seconds splicing time, only 15 seconds Heat-Shrinking.Battery capacity was display in real time, precisely.Built-in 11.1V 4000mah high capacity battery, support 240 times splicing and heating, to meet one days’work.6pcs Long Electrode Lifetime, Each pair electrode life is up to 5000 times,without splicing quality loss.The new wind-protective lid, heater, fiber holders design. Increased waterproof, dust and shock resistance, may be used under severe environment conditions. Max wind velocity of 20m/s.Three Splicing modes: auto, half-auto, manual.Built-in super high-brightness LED supply convenience for day and night work.Auto calculate splicing loss,Splice Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF: ≤0.04dB(typ.)Small bulk and light weight, only 1.36kg include battery.New comfortable High-strength engineering plastics carrying case,It can protect the fusion splicer and avoid the damage of the fusion splicer.meanwhile,The case may be used as a simple working table. Operation manual is installed into the splicer.10000 results Storage

Splicing Fiber Type

SPEEDWOLF FS37A Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc.

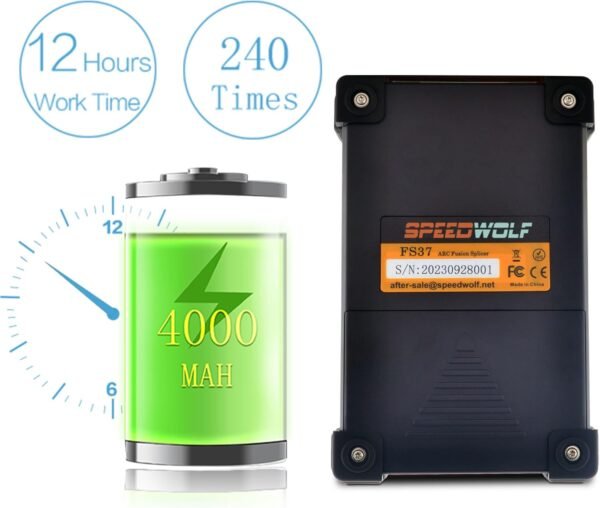

11.1V 4000mah Li-ion Battery

SPEEDWOLF FS37A Fusion Splicer built-in 11.1V 4000mah high capacity battery, support 240 times splicing and heating after full charge, to meet one days’work. and it is easy to replace battery.

Fiber Cleaver with 16Surface Blade

Optical Fiber Cleaver is imported from Korea developed a technology for Splice can meet the heat-fusible fiber a multi-purpose cutters;and it using high-strength blade surface 16 points, longer life, comes with triple fixtures can be incision line, pigtails and bare fiber.

Mini Size

FS37A have small size and light weight—The size is only 208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.1(H)Inch,the weight is only 1.36KG including batter.

Plentiful Accessories

1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*100-240V AC adapter,1*11.1V 4000mah Li Battery,4*Spare Electrodes(Total 6pcs),1*Cooling Tray,1*User Manual CD,1*Plastic Carrying Case.

Quality Control

The hallmark of SPEEDWOLF is quality. All of our commitments,actions and products must be recognized as an expression of quality. Our most important criterion of quality is the satisfaction of our customers.

【Core Alignment Technology】–SPEEDWOLF FS37A fusion splicer has two high precision CMOS Camera which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the CMOS Camera allow the splicer to discriminate between fiber types.
【Wide Compatibility】–SPEEDWOLF FS37A is compatible with ITU-T SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) ED for telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance.Widely used for SM and MM Quartz Fiber with Cable indoor and 0.25mm,0.9mm fiber, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
【High Reliability】–The rugged construction plus improved reliability by resisting shock, dust, and rain;The new wind-cover design, enhance the ability to prevent the dust & wind, Max.wind velocity of 15m/s;Built-in super high-brightness LED supply convenience for night work.
【Easy to use and Efficient work】–Auto splicing, auto arc optimization, auto heating function, Auto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation so on;Built-in counter to warn replace electrode; Ready-package battery with electric quantity indicator, convenient carrying and change; Between X/Y single screen and X&Y easily switch; splicing time less than 7s, and heating time less than 15s (adjustable).
【Portable Design】–Very Small size and light weight–only 208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.0(H)inch and Only 1.36kg/3lb (with battery); High strength portable straps design is convenient for hanging and operating; 4.3” outdoor-enhanced TFT LCD display with X/Y / X / Y Auto turn-over function, FS37A Built in 11.1V 4000mah Lithium battery,It can provide 300+ (splice + heating) circles; Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment.
