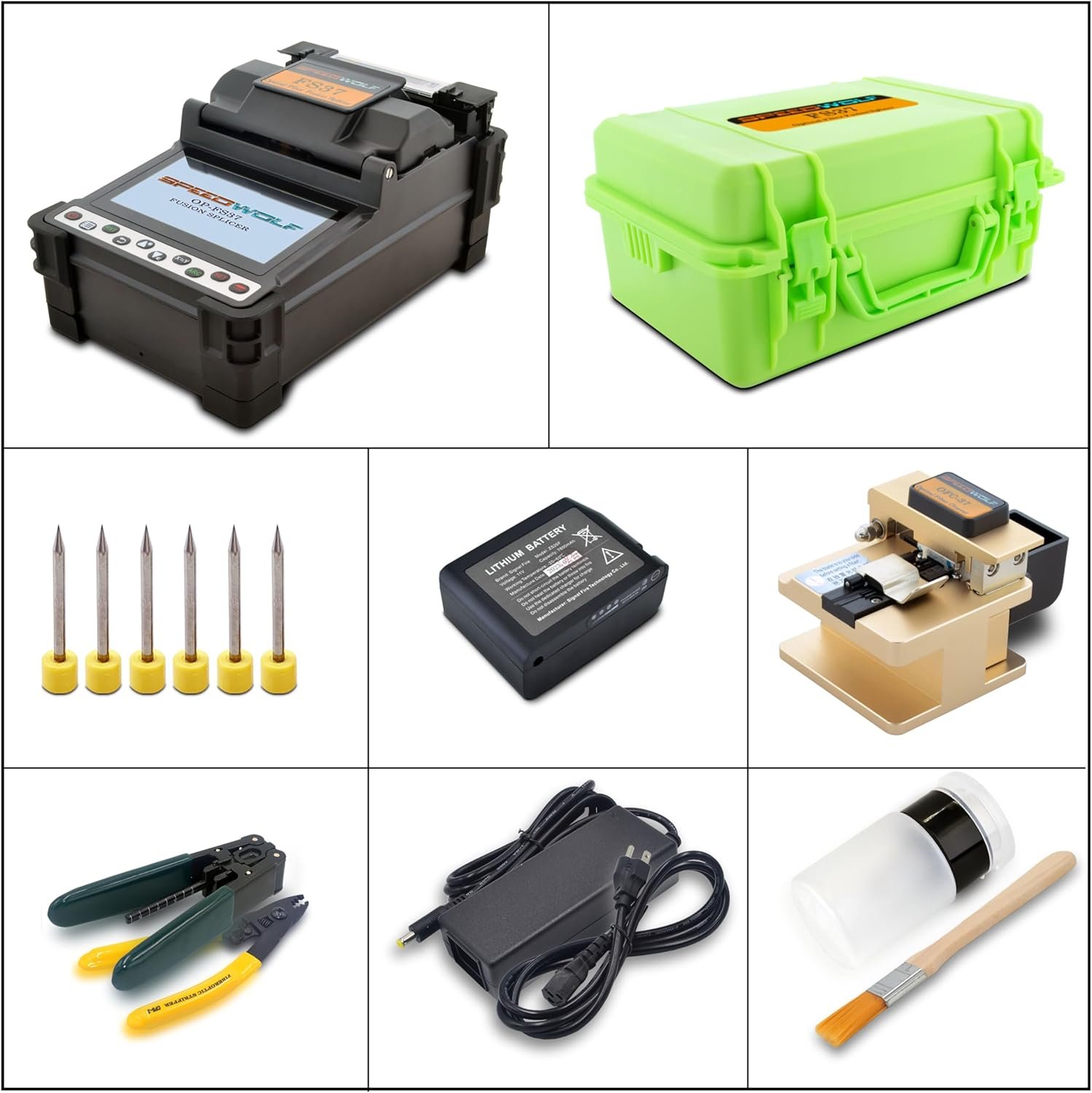

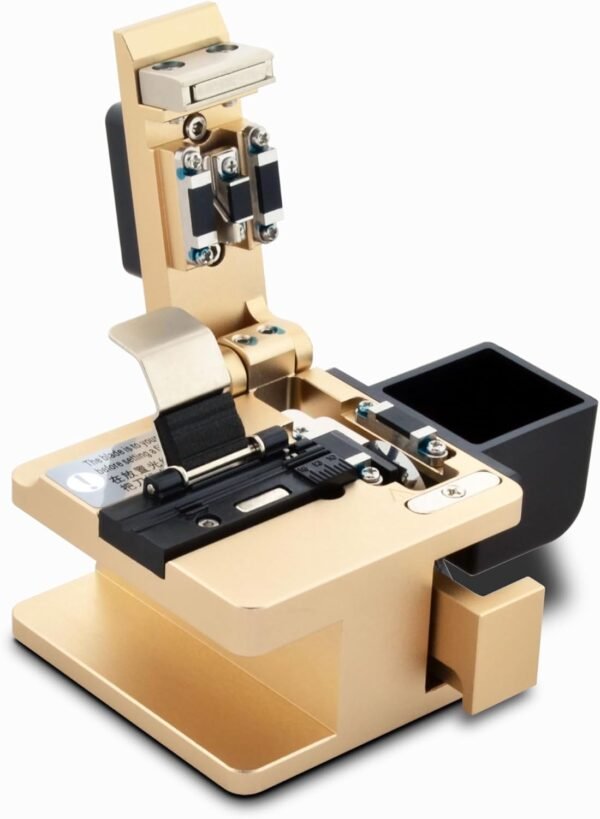

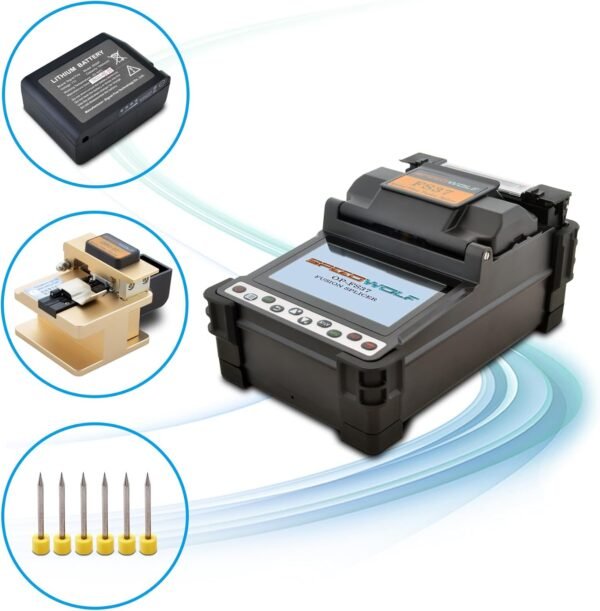

SPEEDWOLF 4.3″ Touch LCD Screen High Precision Fiber Optic Fusion Splicer Machine for SM, MM, NZ-DS, EDF Fibers with Optical Fiber Cleaver and Automatic Focus Function(FS37)

Description

Price: $663.10
(as of Jun 06, 2025 12:23:20 UTC – Details)

From the brand

SPEEDWOLF

Excellent International fiber optic equipment manufacturer

SPEEDWOLF Technology is a company specializing in the production of Optical Fiber Fusion Splicer, Optical Fiber Cleaver, OTDR, Light Source, Optical Power Meter, and Optical Fiber Fixture, and other optical communication instrument high-tech enterprises.

SPEEDWOLF has strict quality requirements. All our commitments, actions and products must be recognized as an expression of quality.

SPEEDWOLF OTDR

SPEEDWOLF OTDR62F

SPEEDWOLF Fusion Splicer

SPEEDWOLF Fiber Test Tools

SPEEDWOLF MPO FIBER

SPEEDWOLF New Product

【Core Alignment Technology】–SPEEDWOLF FS37 fusion splicer has two high precision CMOS Camera which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the CMOS Camera allow the splicer to discriminate between fiber types.
【Wide Compatibility】–SPEEDWOLF FS37 is compatible with ITU-T SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) ED for telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance.Widely used for SM and MM Quartz Fiber with Cable indoor and 0.25mm,0.9mm fiber, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.

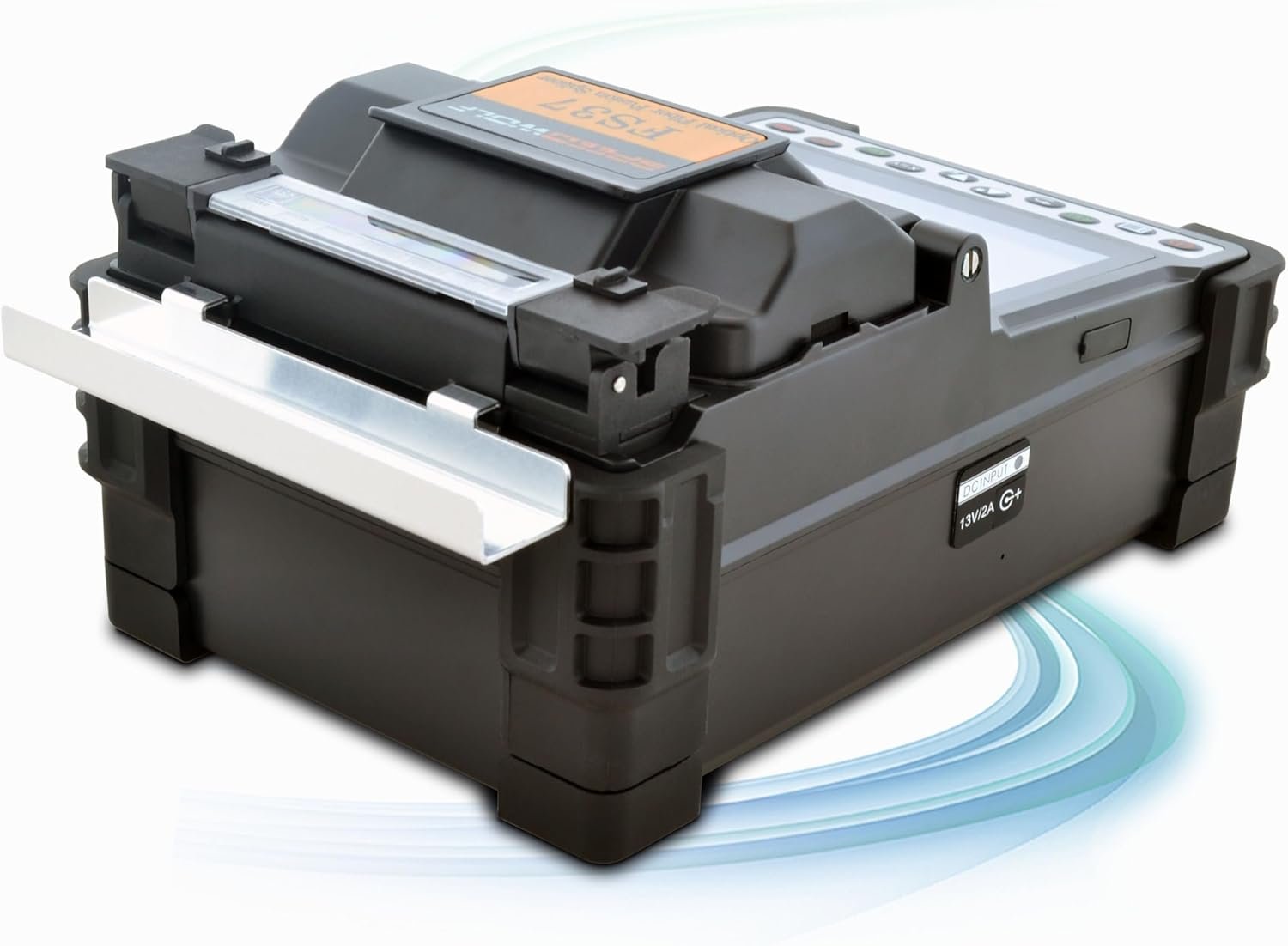

【High Reliability】–The rugged construction plus improved reliability by resisting shock, dust, and rain;The new wind-cover design, enhance the ability to prevent the dust & wind, Max.wind velocity of 15m/s;Built-in super high-brightness LED supply convenience for night work.
【Easy to use and Efficient work】–Auto splicing, auto arc optimization, auto heating function, Auto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation so on;Built-in counter to warn replace electrode; Ready-package battery with electric quantity indicator, convenient carrying and change; Between X/Y single screen and X&Y easily switch; splicing time less than 7s, and heating time less than 15s (adjustable).

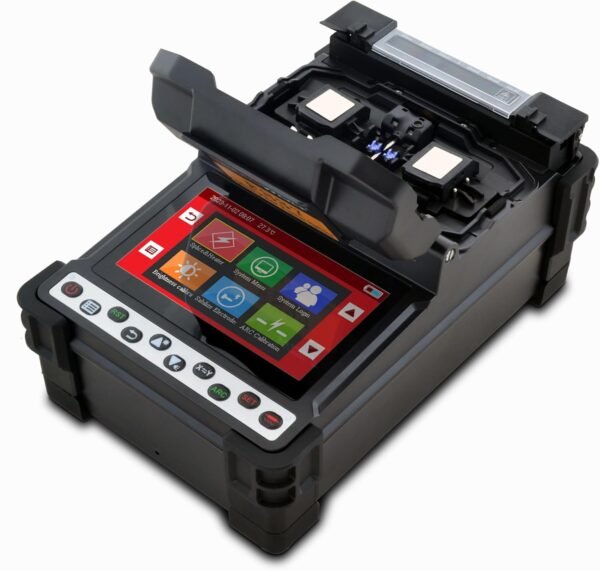

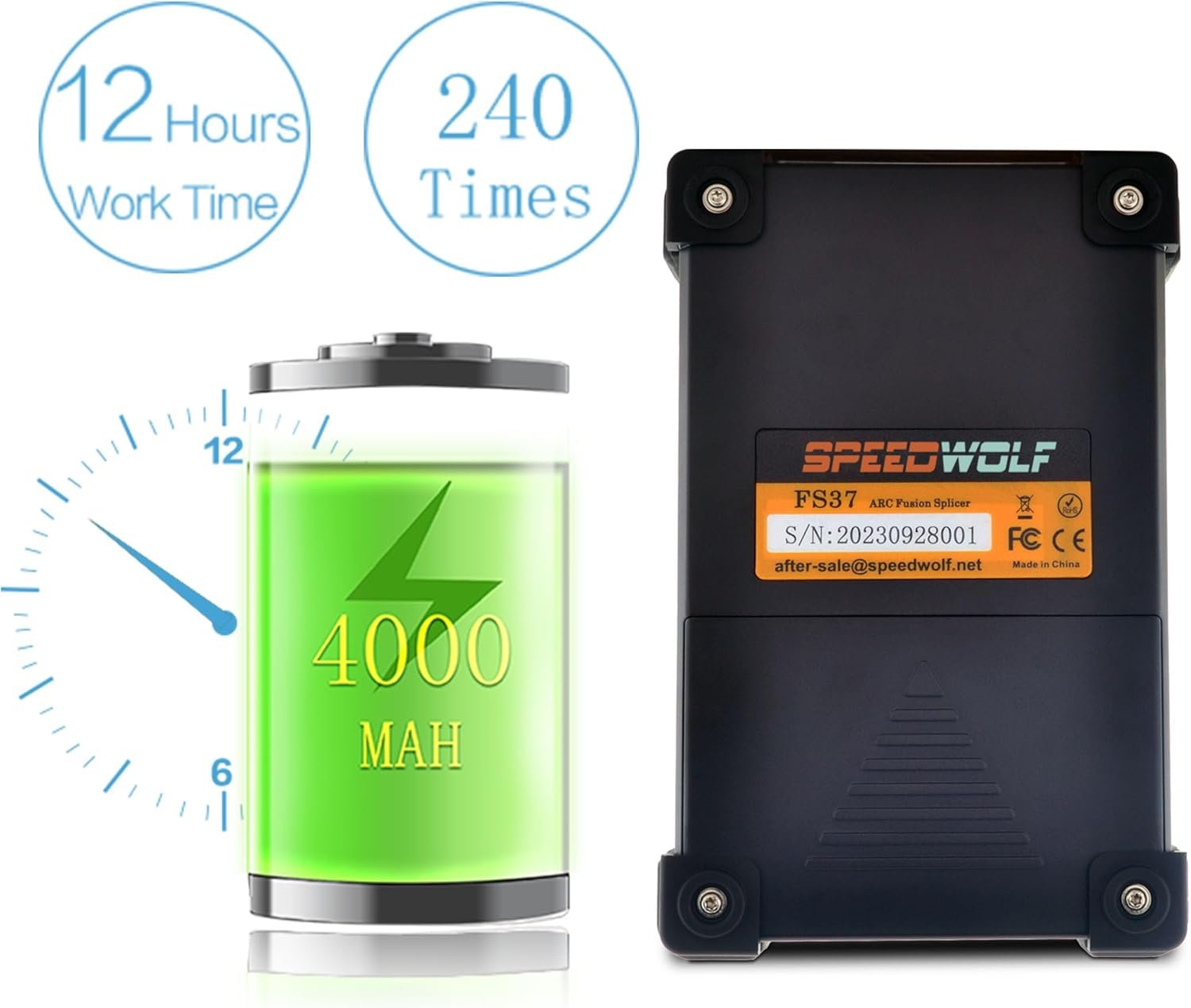

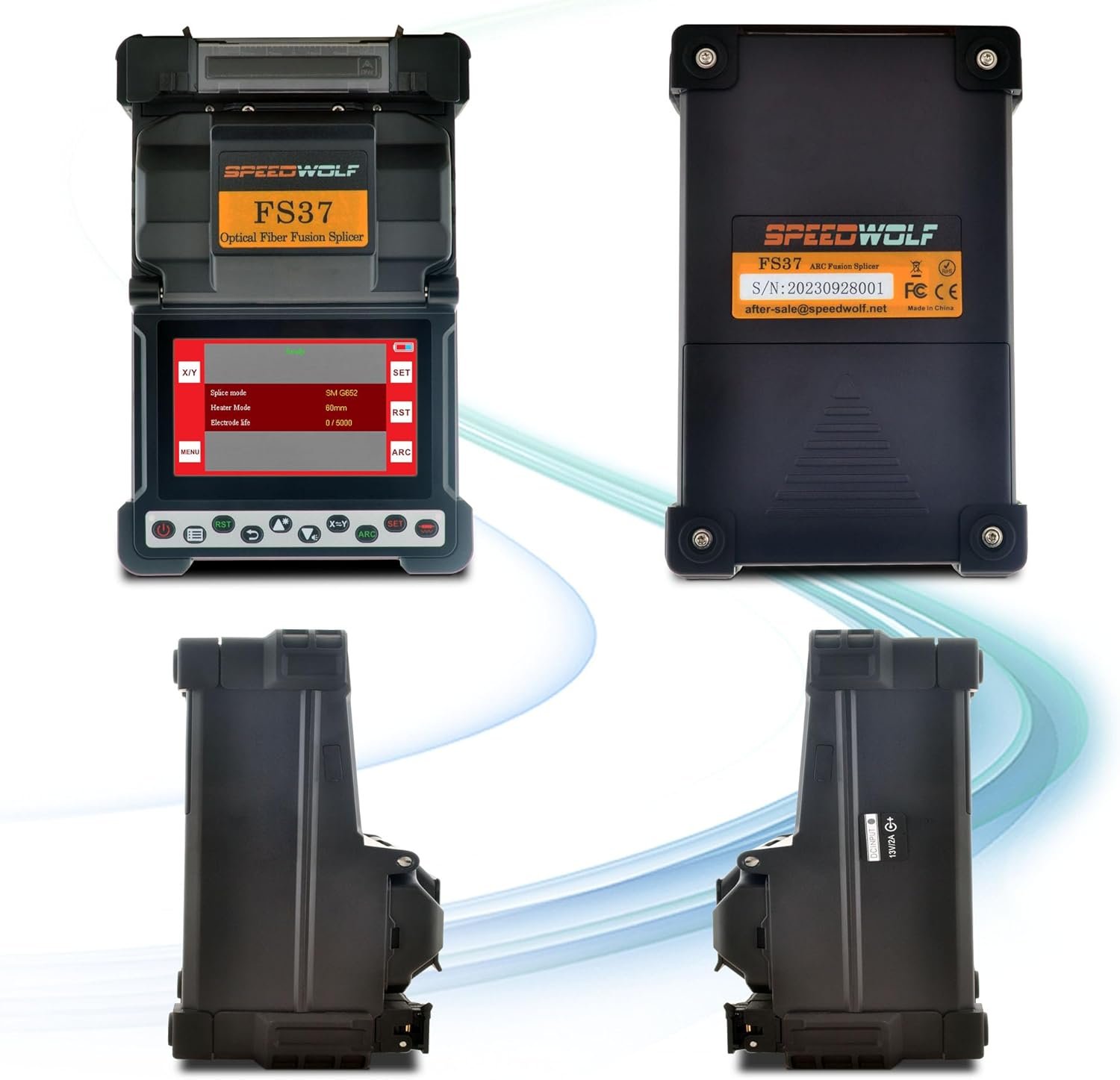

【Portable Design】–Very Small size and light weight–only 208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.0(H)inch and Only 1.36kg/3lb (with battery); High strength portable straps design is convenient for hanging and operating; 4.3” outdoor-enhanced TFT LCD display with X/Y / X / Y Auto turn-over function, FS37 Built in 11.1V 4000mah Lithium battery,It can provide 300+ (splice + heating) circles; Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment.
