Plasma Cutter, [Pilot Arc] [Large LED Display] [Air Sensor Technology] 80Amps Cutter Machine 110/220V Dual Voltage IGBT Inverter 1 Inch Clean Cut, Post Flow 2T/4T for Home DIY, BTC800DP 9GEN

Description

Price: $597.79 - $499.99
(as of May 28, 2025 17:56:58 UTC – Details)

From the brand

HF Pilot Arc Plasma Cutter

Synergic Control MIG Welder

HF Pilot Arc Plasma Cutter

Blow Back Non-HF Pilot Arc

Plasma Cutter

Plasma Cutter

Pilot Arc Plasma Cutter

Plasma Cutter Consumables

MIG/Stick Welder

Welder Accessories

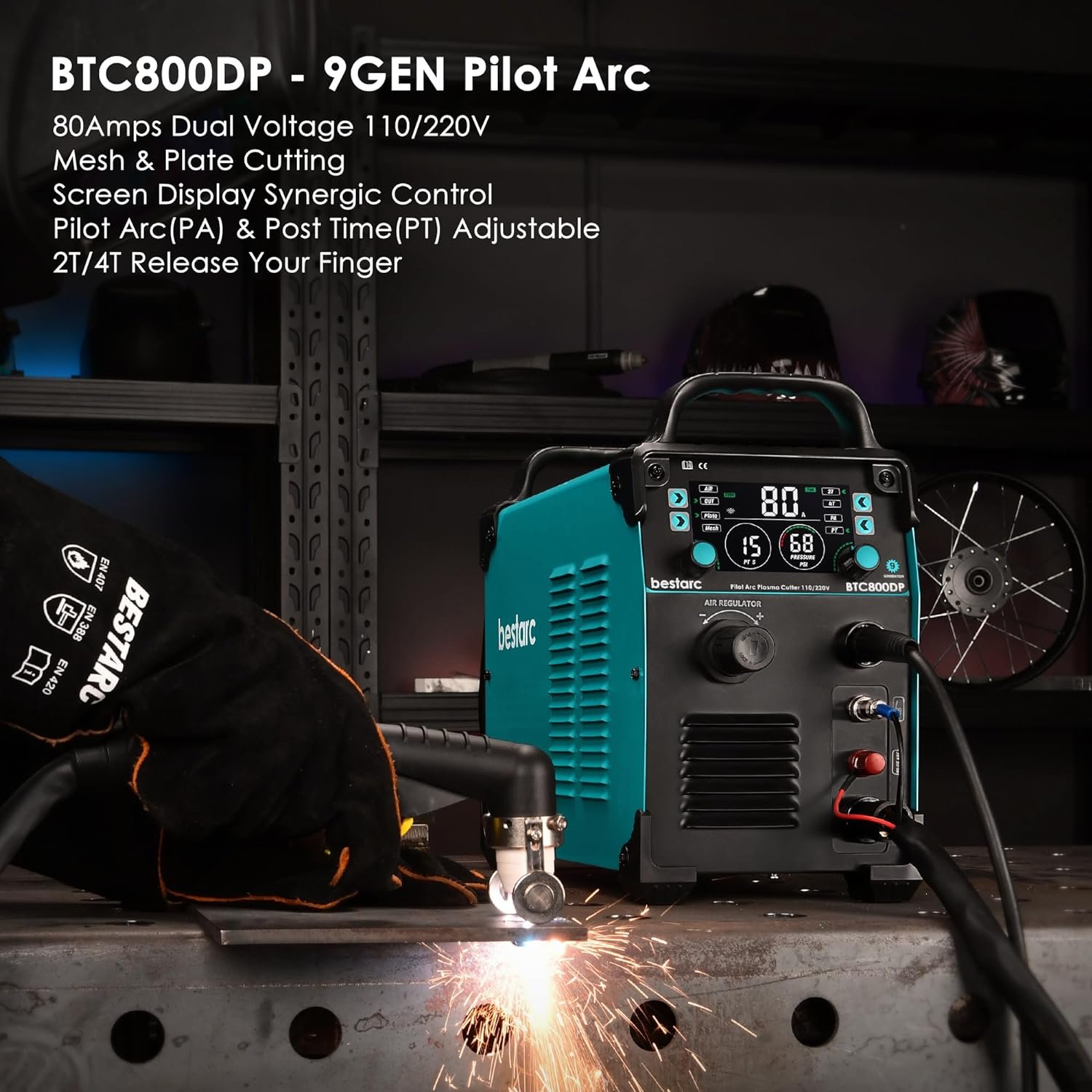

[Pilot Arc Function]: BTC800DP 9th bestarc plasma cutter has the pilot arc function. It is a high frequency non-touch arc starting mode. The torch head does not need to touch the metal plate. The cutting methods of mesh and plate are added to solve the problem that cutting mesh is easy to break arc

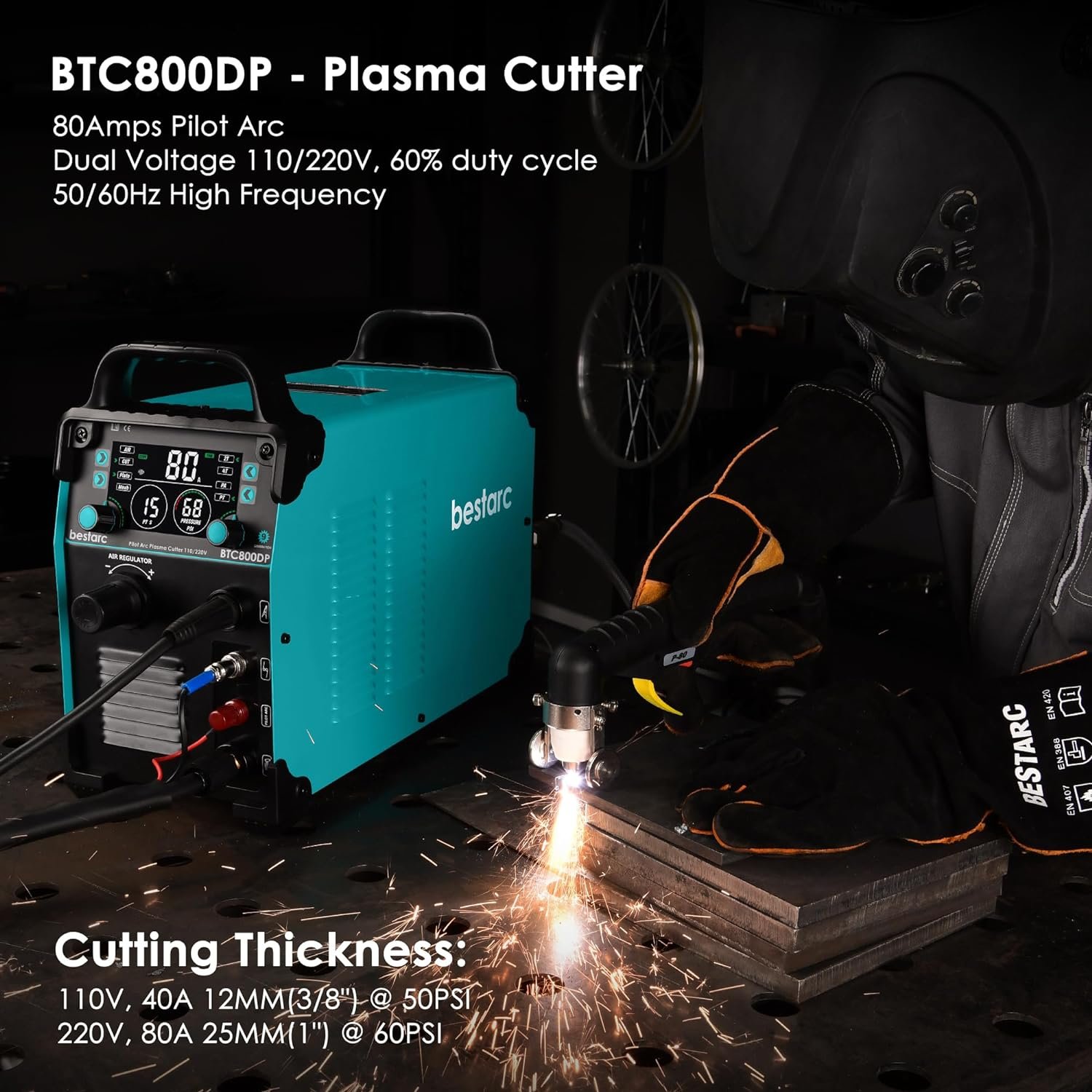

[Cutting Thickness]: Pilot arc plasma cutter adopting advanced IGBT inverter technology, 50/60Hz high-frequency pilot arc, dual voltage 110/220V, 60% duty cycle. Current display at 110V is 15-40A, Under 220V current display is 15-80A. The maximum cutting thickness of bestarc 80A plasma cutter can reach up to 1” @80A 220V 70PSI, while ideal clean cut at 5/8” @40A 110V 55PSI. The circuit breaker specifications require a 60A unit for 110V operation and a 50A unit for 220V

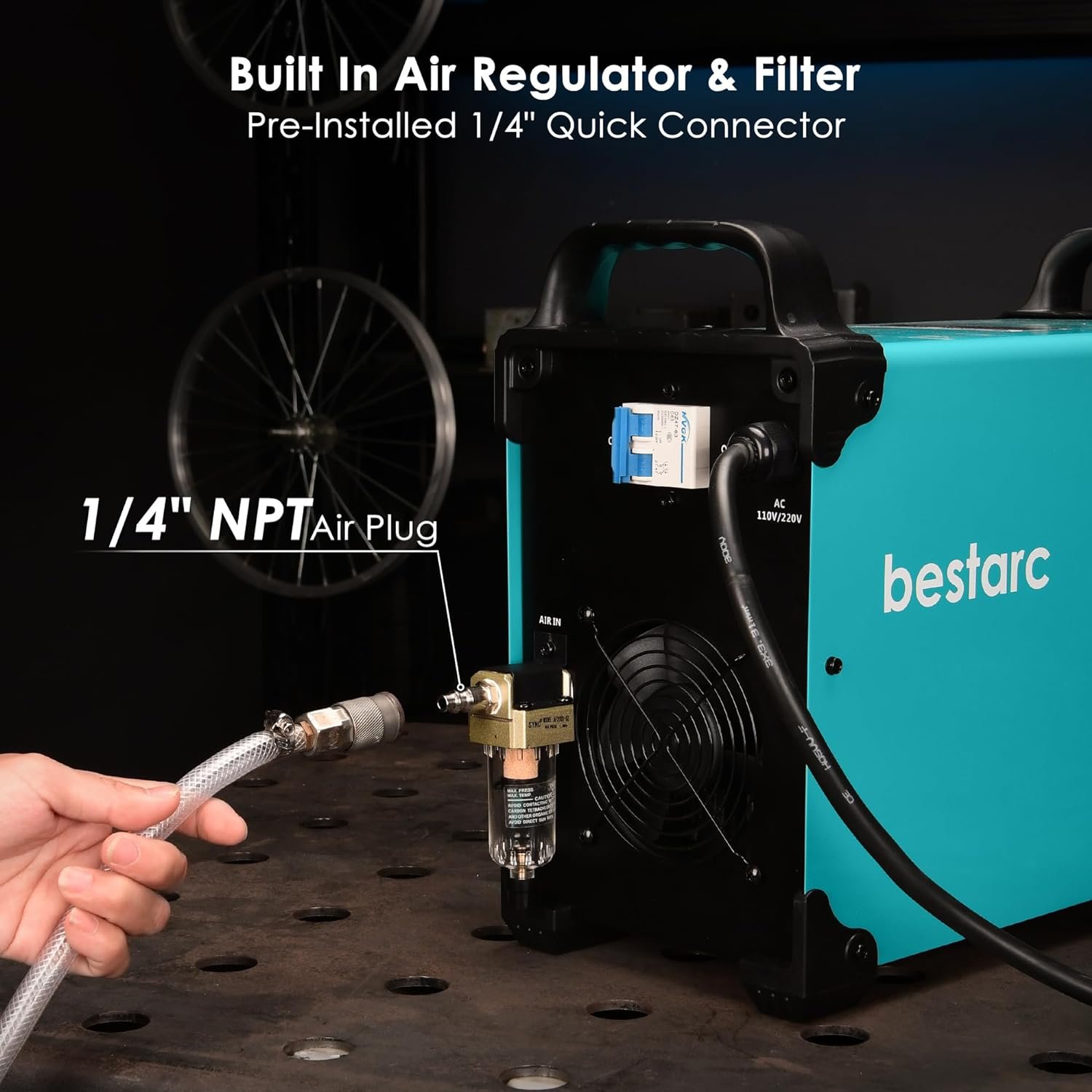

[Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute
[Digital Screen Display]: The screen of the plasma cutter machine displays the parameters centrally such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If plasma cutter cannot work, the screen comes with an error code system, making it easy to find out the problems
[PT/2T/4T/PA Function]: Post time function, with an adjustment range of 3-15 seconds. Adjust the cooling time of the torch head to extend the service life of consumables. Generally speaking, we recommend a cooling time of 4-8 seconds. 2T/4T automatic cutting release your finger. 2T is semi-automatic cutting control, and 4T is automatic cutting control. PA adjust the time for the pilot arc, longer seconds good at cutting mesh metal, short seconds is good to extend the life of consumables
