LTP7500CNC Non-Touch Pilot Arc CNC Enabled Digital Plasma Cutter (LTP7500CNC With Handheld Torch)

Price: $739.00
(as of Jun 07, 2025 05:26:49 UTC – Details)


PORTABLE and POWERFUL–The LTP7500D can easily cut 1” (26 mm) metal with ultimate portability weighing only 40lbs;
The LT7500D is an excellent choice for home DIY jobs and light duty small business projects.

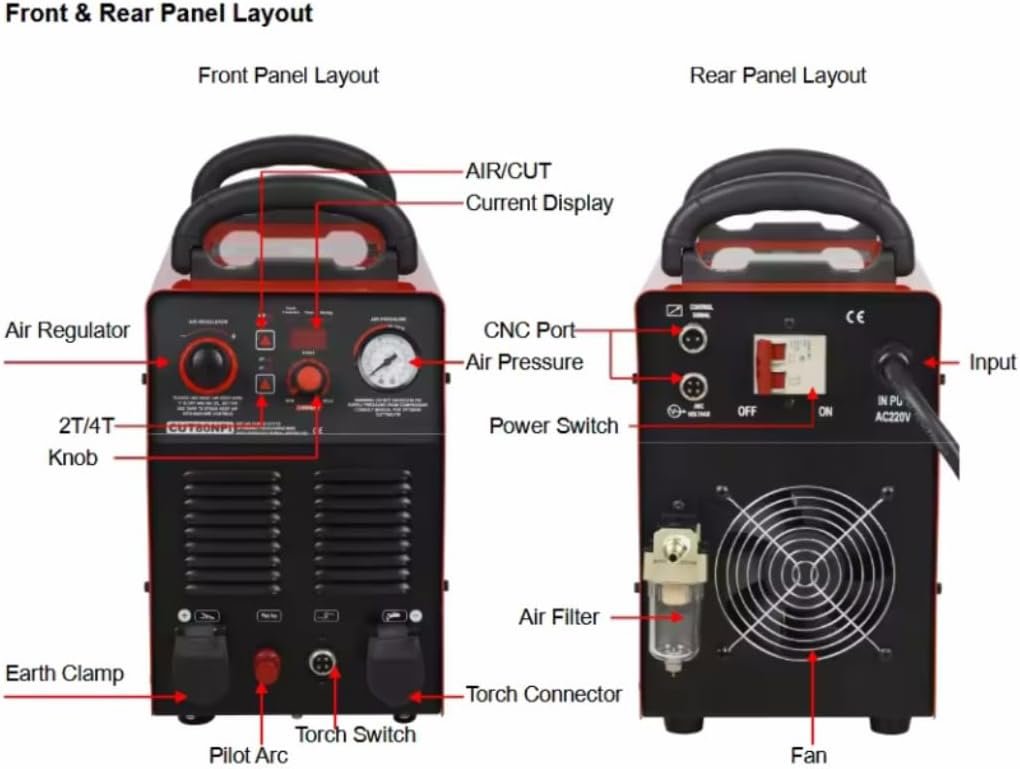

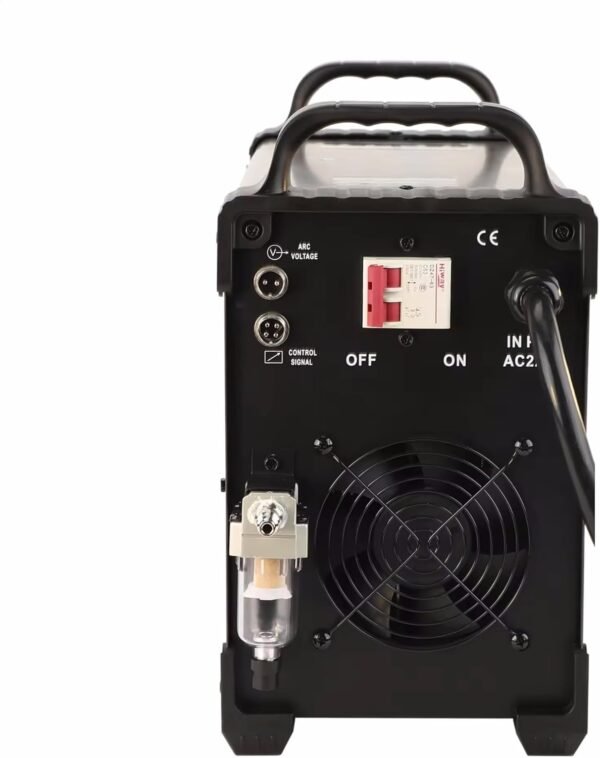

CNC ENABLED Pre-installed CNC Interface with THC (Torch Height Controller) signal output.
Non-HF Blowback Start, there is no HF interference on your CNC computer.
SETUP WITHIN 1 MIN–the per-installed NPT 1/4” industry type D plug and air filter regulator allows you to quick connect to your air compressor by using the stand coupler existing on your air compressor.
The Non-HF start 14ft torch with central connector save your time to connect the torch to your plasma cutter.
The whole machine can be setup quickly within 1 min.
INPUT: Fully Output Circuit Breaker Requirement: 220~250V AC @ 50A. Air Compressor Requirement: 80 PSI @ 4.5 SCFM.
OUTPUT: 20-75 A DC output, 1” ideal clean cut and 1 ½” maximum severance cut under 220/240V.
SUITABLE CUTTING–for Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, etc. Uses non-hazardous compressed air to cut, safe and at low cost.
BUY WITH CONFIDENCE: We offer 30 days refund and a 3-YEARS Limited
Warranty: include 1 Year NEW Replacement Warranty.
US BASED CUSTOMER CARE & SUPPORT TEAM: please feel free to contact us by phone or email, we always stand Back on Our Products.
Please submit the registration form on our website.

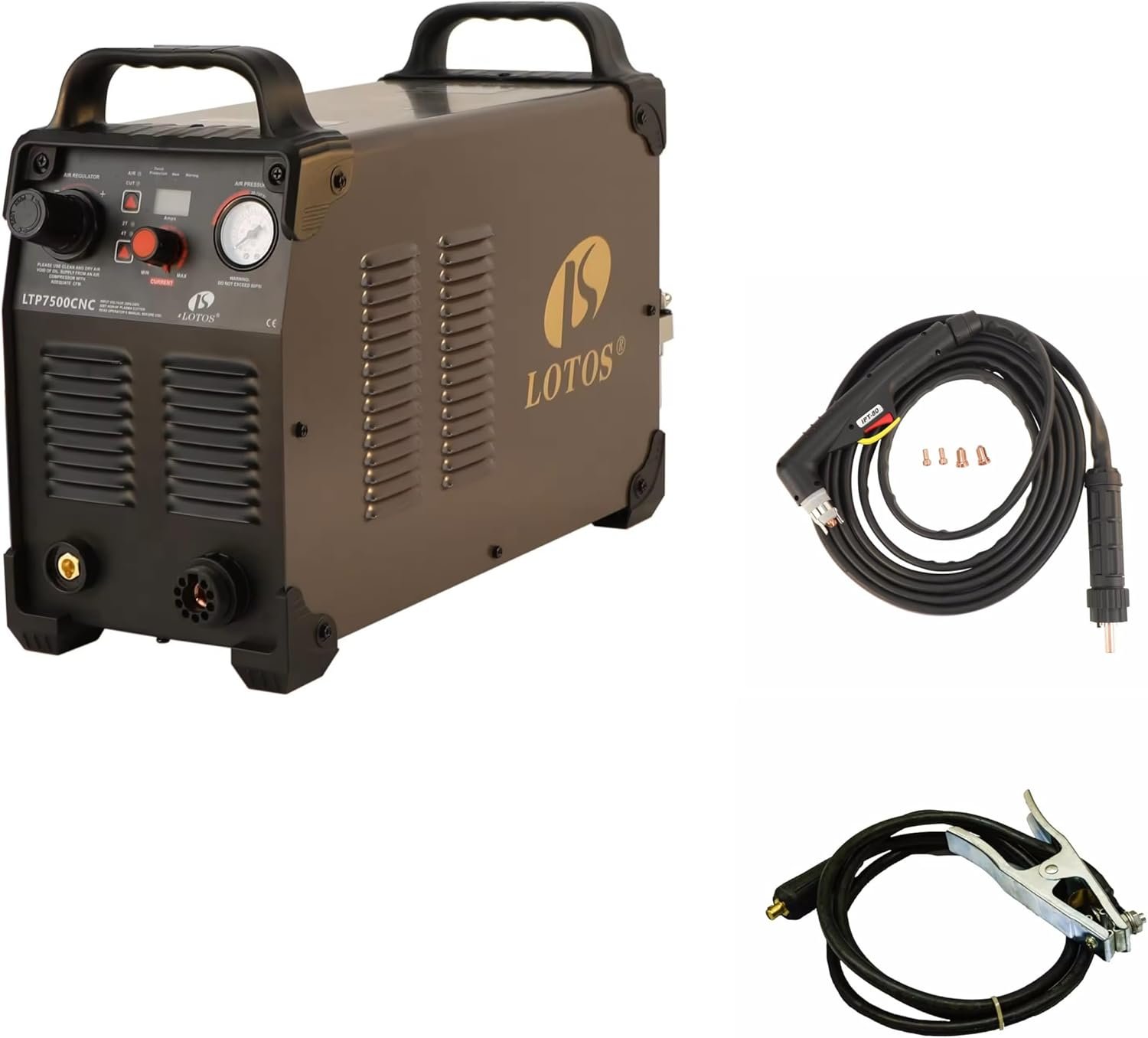

PACKAGE INCLUDES:
IGBT Invertor power supply
16ft Blowback Non-HF Start Cutting Torch
Consumables
Ground Clamp
Pre-Installed NPT 1/4” Industry Type D Plug Quick Connector
Pre-Installed Air Filter Regulator.
With the reliable Blow-Back non-high frequency start, the LTP7500DCNC is suitable for CNC application meaning there will be no interference on your CNC computer system.

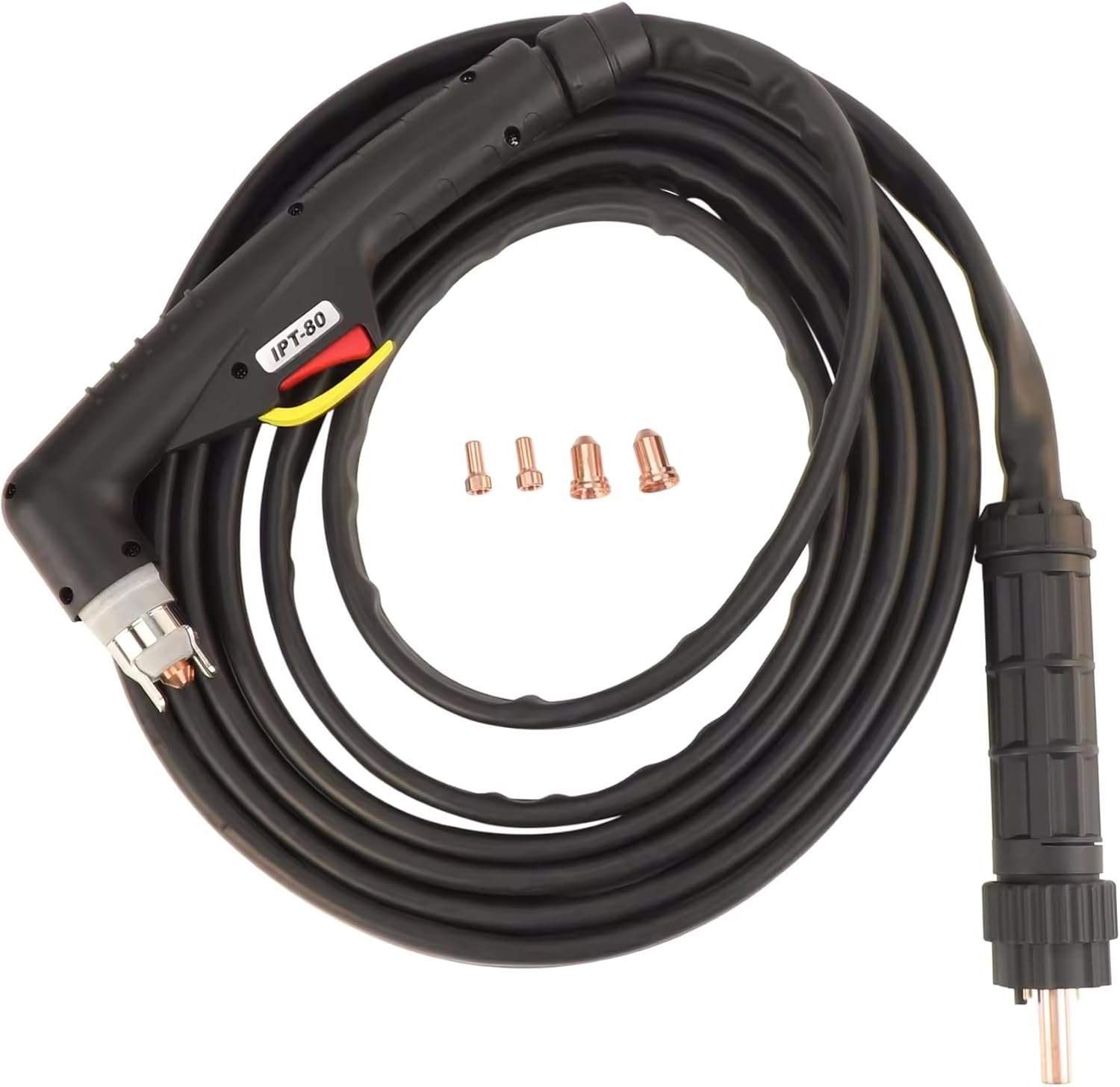

The 16ft torch features a “BLOWBACK” design with a Euro-type Central connector. Offering improved consumable life with a patented “BACK STRIKING” design.
The Non-HF Start pilot arc torch with a Euro-type Central connector offering improved consumable life with a patented “BACK STRIKING” design.
2T/4T Function enabled. Latest IGBT Inverter Technology
The pre-installed NPT 1/4” industry type D plug and air filter regulator allows you to quick connect to your air compressor by using the stand coupler existing on your air compressor.
