Fujikura New Model FSM-90S with CT50 Cleaver Welding Fusion Splicer Multi Language Instead of FSM-70S

Description

Price: $7,200.00
(as of Jun 06, 2025 08:49:38 UTC – Details)

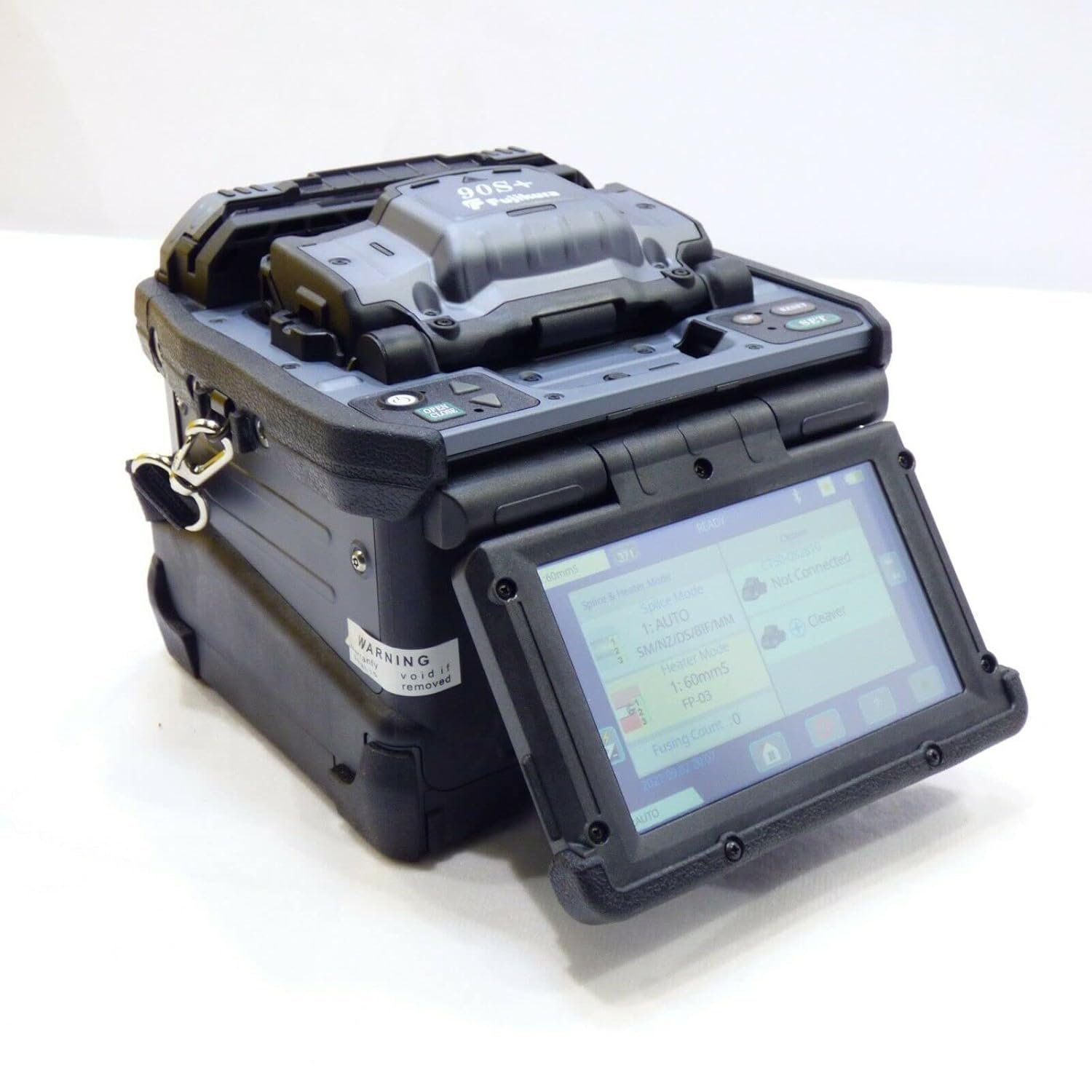

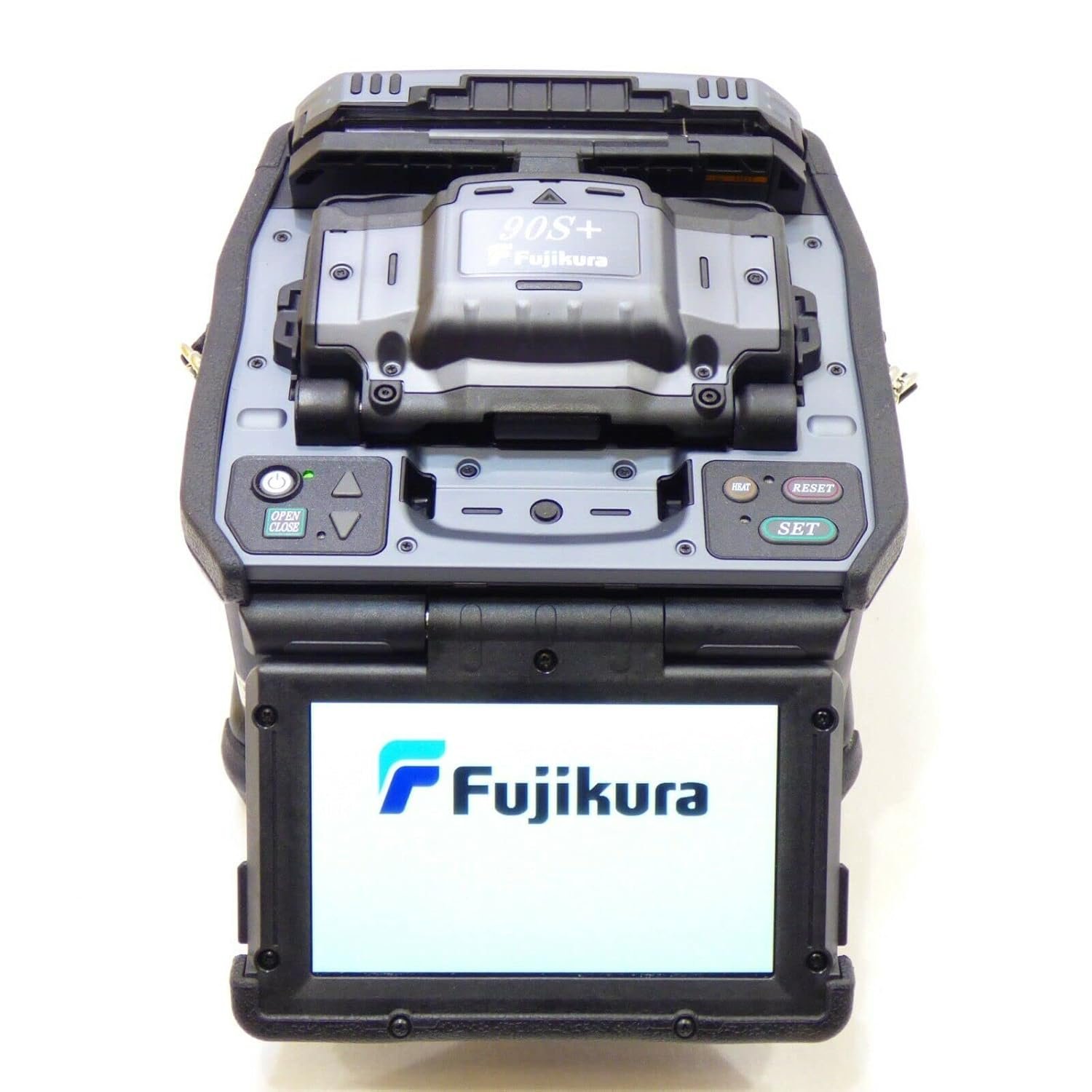

Fujikura 90S+ core alignment fusion splicer solves common problems seen in the field—from splicing poor quality legacy fiber to automated equipment maintenance and upkeep. The 90S+ can be used in multiple field splicing applications including bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF fibers, loose buffer fiber, splice-on connectors, & the list goes on. The speed and accuracy of the 90S+ make it suitable for certain products and specialty environments where high output, tight packaging, and low loss requirements are required. Regardless of your scenario, the 90S+ is designed to keep you in the field with an extended battery life of 300 splice and heat cycles. With its multiple automated and easy-to-use features, the 90S+ alleviates the need for traditional operation tasks such as frequent arc calibrations, cleaver blade rotations, cleaver usage tracking, and manual splicing operations. A redesigned work tray, cooling tray, and optional cable clamp make the 90S+ kit more versatile than its predecessors in adapting to varying work conditions and environments. When splicing loose buffer fiber, additional sheath clamps are not needed. The standard universal sheath clamp now handles both loose and tight buffer fibers. The new AFC technology improves splice losses for fibers that possess a poor cleave angle. Combined with Active Blade Management between the splicer and cleaver, the 90S+ contains a robust set of splicing features that will reduce the likelihood of poor splice installations or repairs. Features: Cleaver tracking and upkeep with wireless communication Improved real-time arc control for fibers with poor cleave angles Loose and tight buffer with same sheath clamp Automated wind protector, sheath clamps & splice operation Graphical User Interface with 5.0″ Touchscreen PC software & 90S manual download from splicer Multi-function transit case with integrated workstation Li-Ion Battery with 300 splices/shrinks per charge
Product Dimensions ‏ : ‎ 18.5 x 16.93 x 17.72 inches; 17.64 Pounds
Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)
Date First Available ‏ : ‎ December 15, 2020
Manufacturer ‏ : ‎ Fujikura
ASIN ‏ : ‎ B08YY9QD4Q
Country of Origin ‏ : ‎ Japan

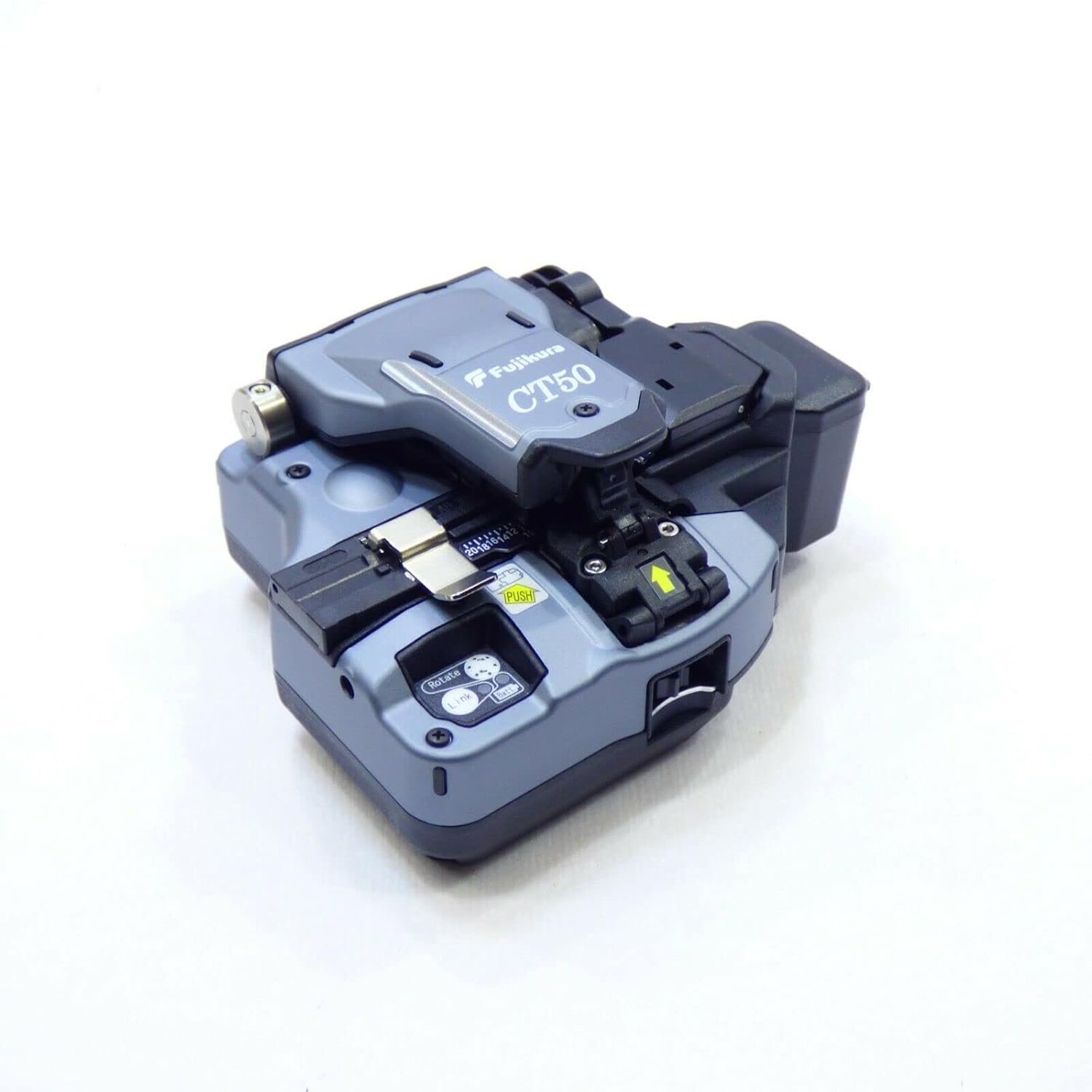

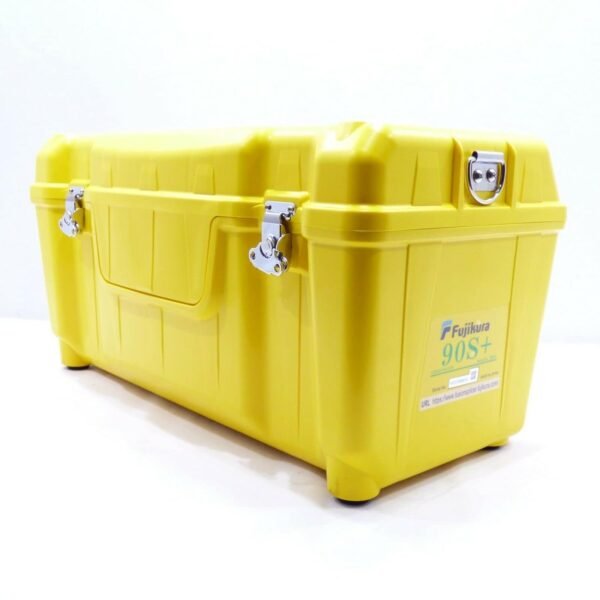

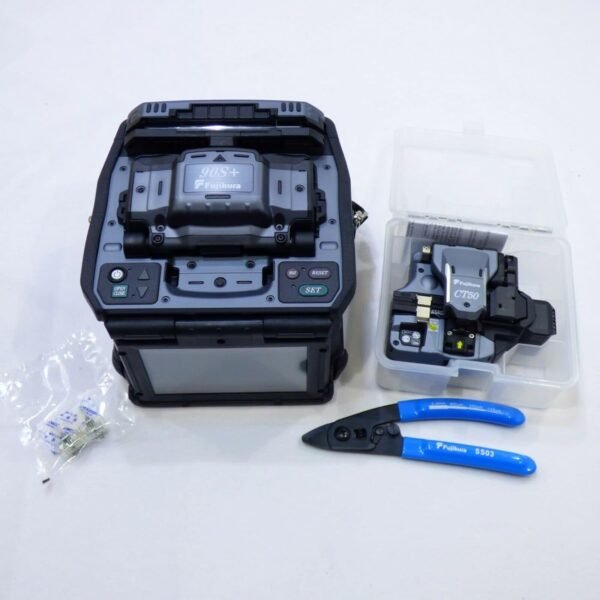

Fusion splicer FSM-90S+, Fiber Cleaver CT50, Battery Pcak BTR-15, AC Adapter ADC-20, AC Power Cord ACC-14, USB Cable USB-01, Spare Electrode ELCT2-16B, Fusion Splicer Strap ST-02, Fiber Holder Set Plate SP-03 Hexagonal Wrench HEX-01, V-groove Cleaning Brush VCB-01, Carrying Case CC-39, Work Tray Left WT-09L, Work Tray Right WT-09R, Tripod Screw TS-03, Work Tray J-Plate JP-09, Carrying Case Strap ST-03, Alcohol Dispenser AP-02, Quick Reference Guide QRG-03-E
Splicing Time 7 sec Heat time 13-15 sec.automated wind protector, sheath clamps, and splice operation.
Reduces splice loss by advanced image processing technology with high precision lenses and identification of optimum arc discharge according to fiber type.
Can be used for bend-insensitive fibers in drop cables, long-haul terrestrial and submarine fibers, loose buffer fiber, splice-on connectors
