FoxAlien Masuter Pro CNC Router Machine, Upgraded 3-Axis Engraving All-Metal Milling Machine for Wood Acrylic MDF Nylon Carving Cutting

Description

Price: $599.00
(as of May 28, 2025 03:25:41 UTC – Details)

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Product Specifications

Active Working Area 15.75” x 15.75” x 2.36” (400 x 400 x 60mm) Input Voltage & Current 12V/5A Spindle Power 60 watt Spindle Speed 10000 r/min Stepper Motor NEMA 17 Firmware Version 1.1H Driven System Belt-driven (X, Y-axis); Linear rail-driven (Z-axis) Support OS Windows XP/7/8/10/11, Linux, Mac OS Software Grblcontrol(Candle), UGS, and other GRBL compatible software

1 Z-axis Linear Rails

2 Dust-proof Controller Box

3 Support GRBL Software

1 Support 300W Spindle

2 Support Trim Router

3 Support Engraving Kit

4 Support Extension Kit

1 FAQ

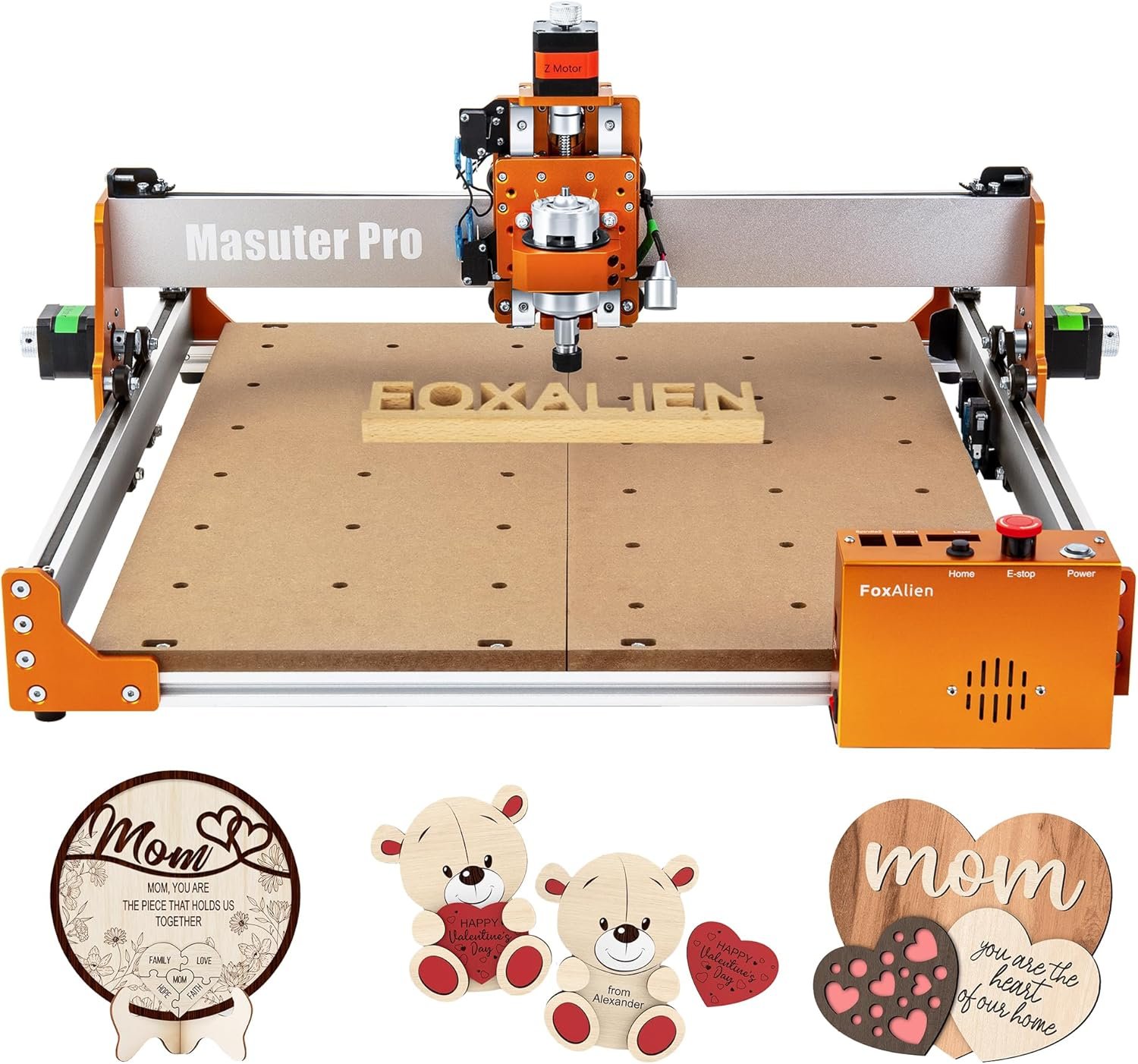

2 Carving Works Display

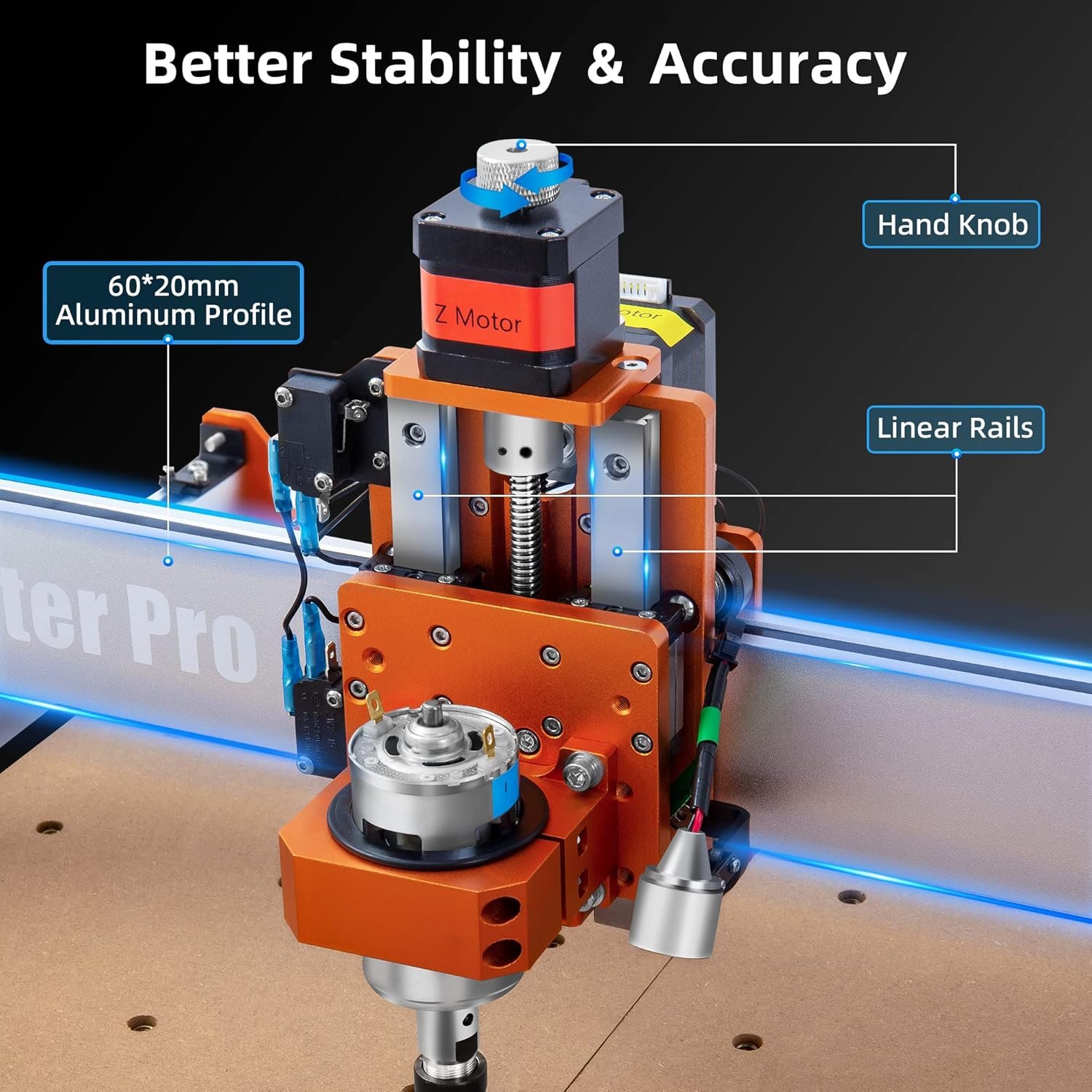

Structure Upgrade: Masuter Pro is an All-Aluminum CNC router machine. The Z-axis uses Linear Rail instead of rods and T8 lead screw, this greatly improves the stability and accuracy.

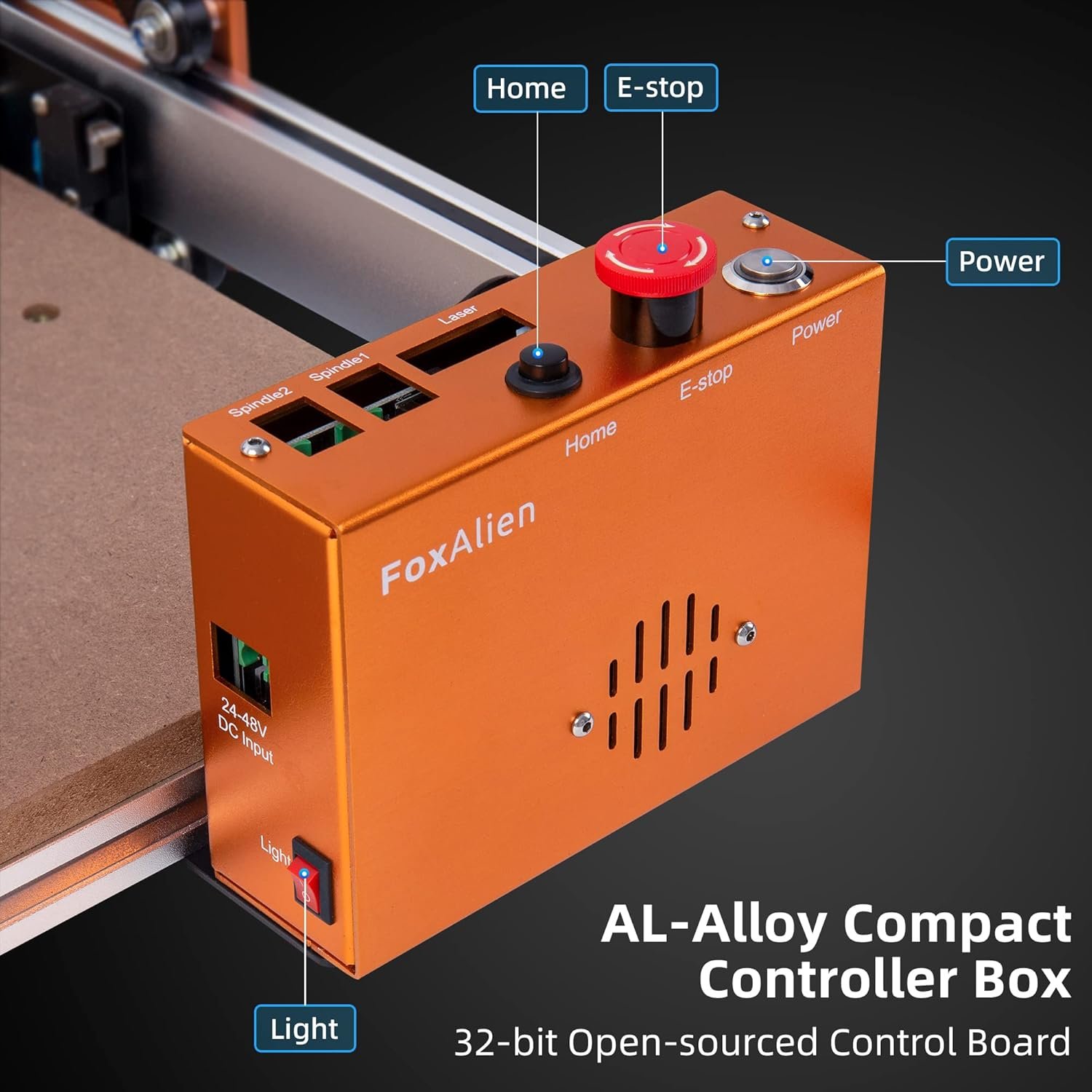

Upgraded Controller Box: Compact controller box desgin. The emergency stop button and home button are more easily and more convenient to access. The control box is also dust-proof for easy maintenance.

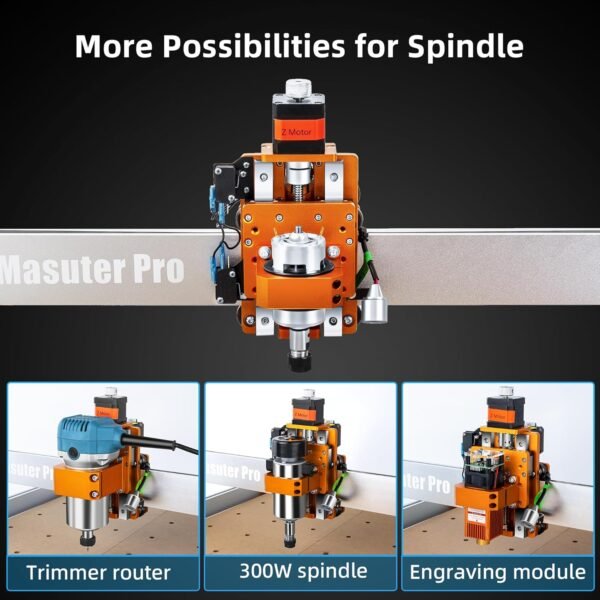

Compatibility Upgrade: Masuter Pro includes 2 spindle clamps: 52mm & 65mm. The 52mm clamp can accommodate the 60W spindle, 300W spindle and the FoxAlien 20W/40W modules. The 65mm clamp is for customized upgrade, such as 65mm router, 1.5KW spindle, etc. It also supports the 69mm spindle clamp, please buy separately.

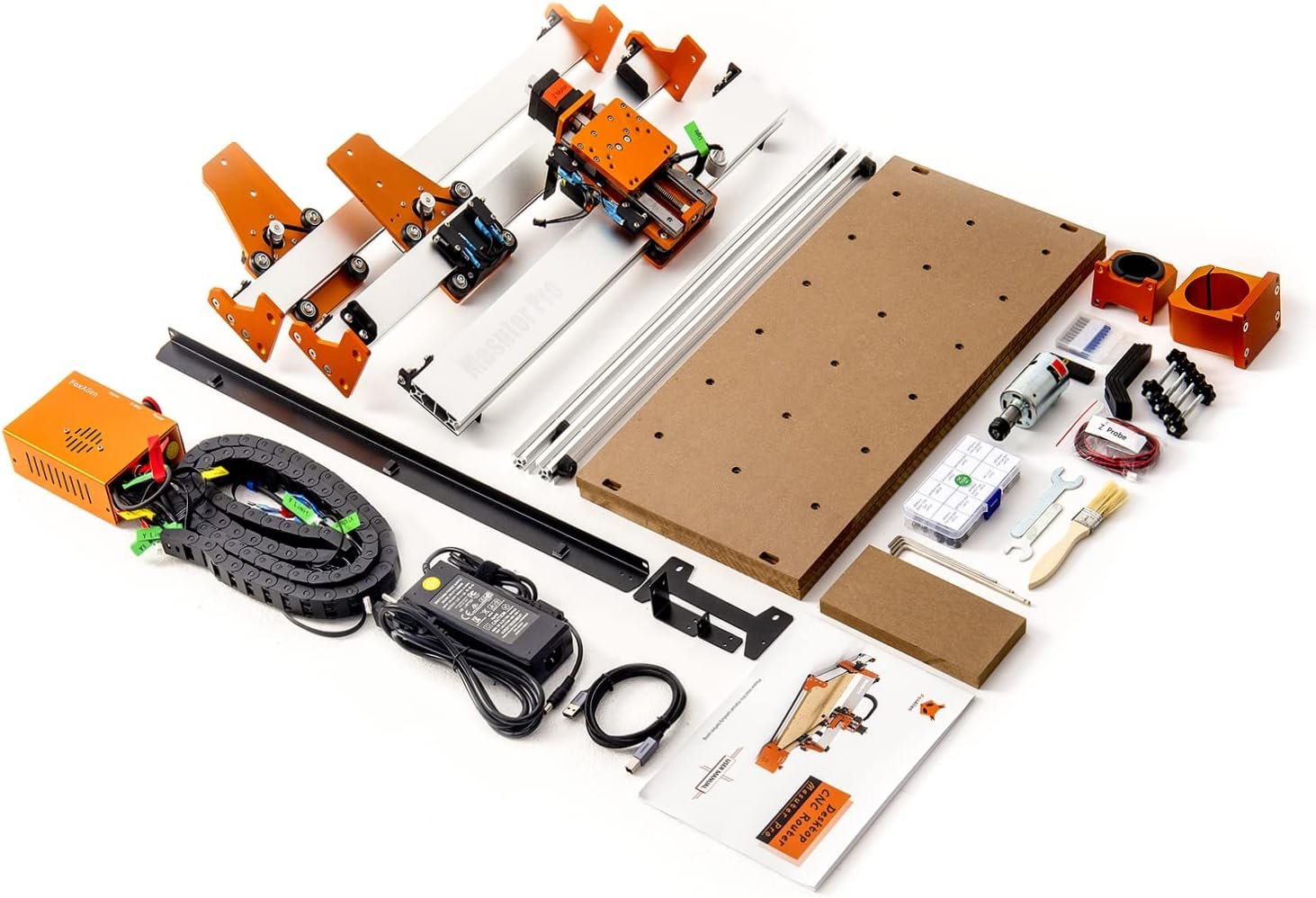

Assembly Upgrade: Main parts are pre-assembled, and the part of the wires are pre-wired to the controller box. A detailed assembly guide is included. We provide step by step assembly manual.It takes only 10-15 minutes to fully assemble.

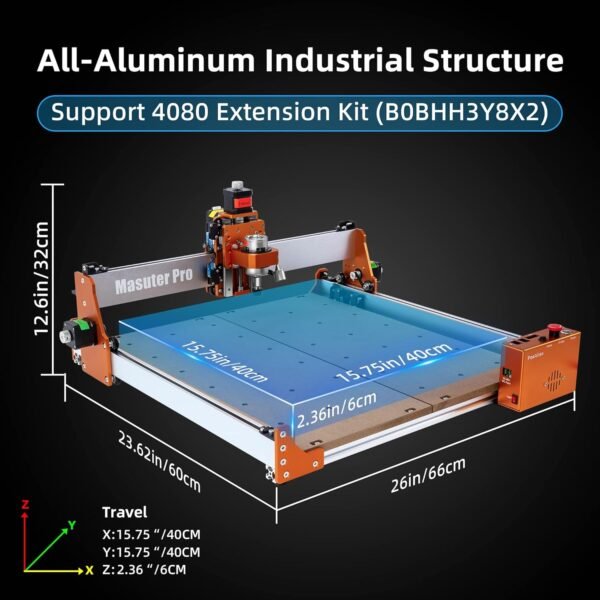

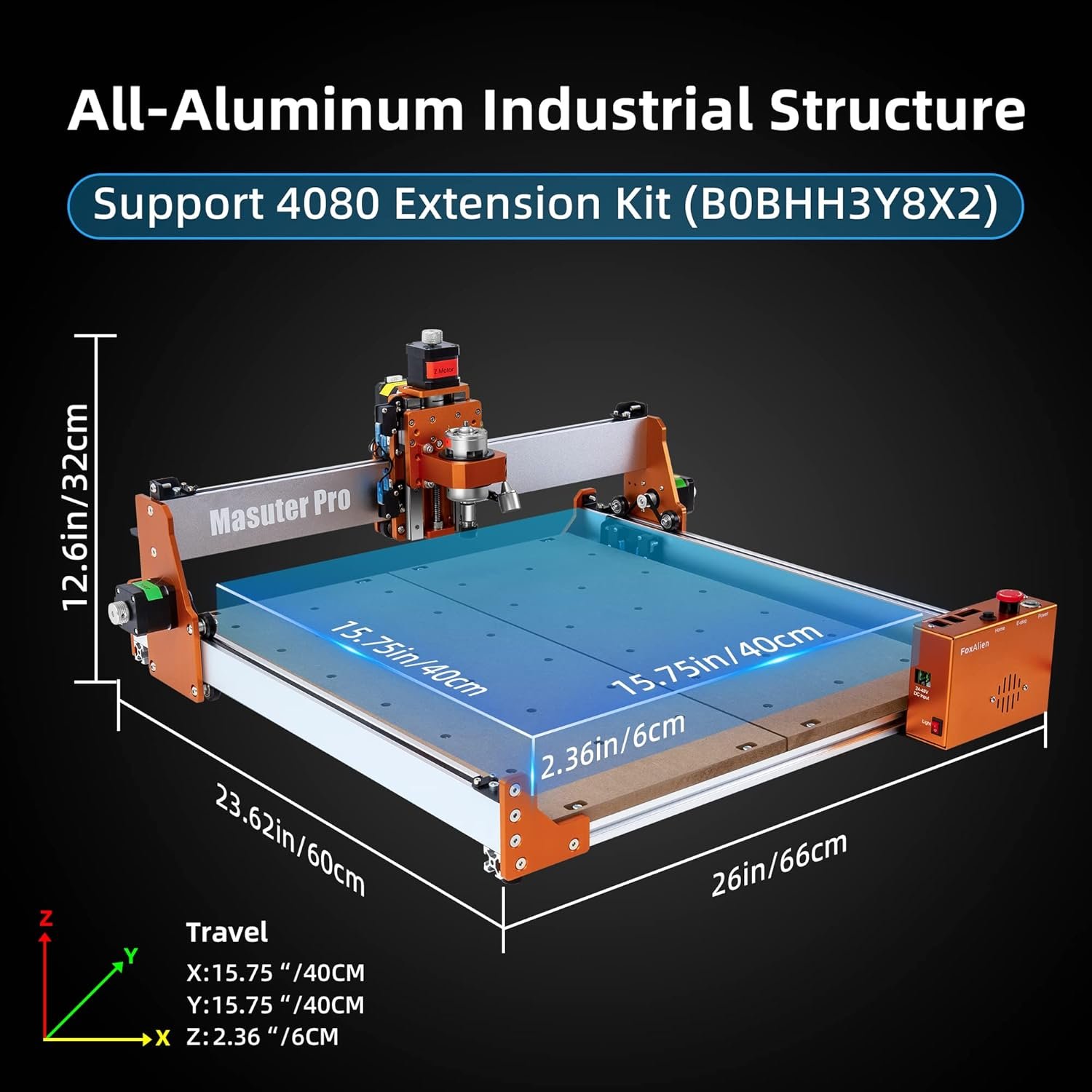

Large Engraving Area: The active working area is 15.75” x 15.75” x 2.36” (400 x 400 x 60mm). It is large enough for daily woodworking. It supports extension kit to enlarge the working area. It supports Y-axis entension kit.
