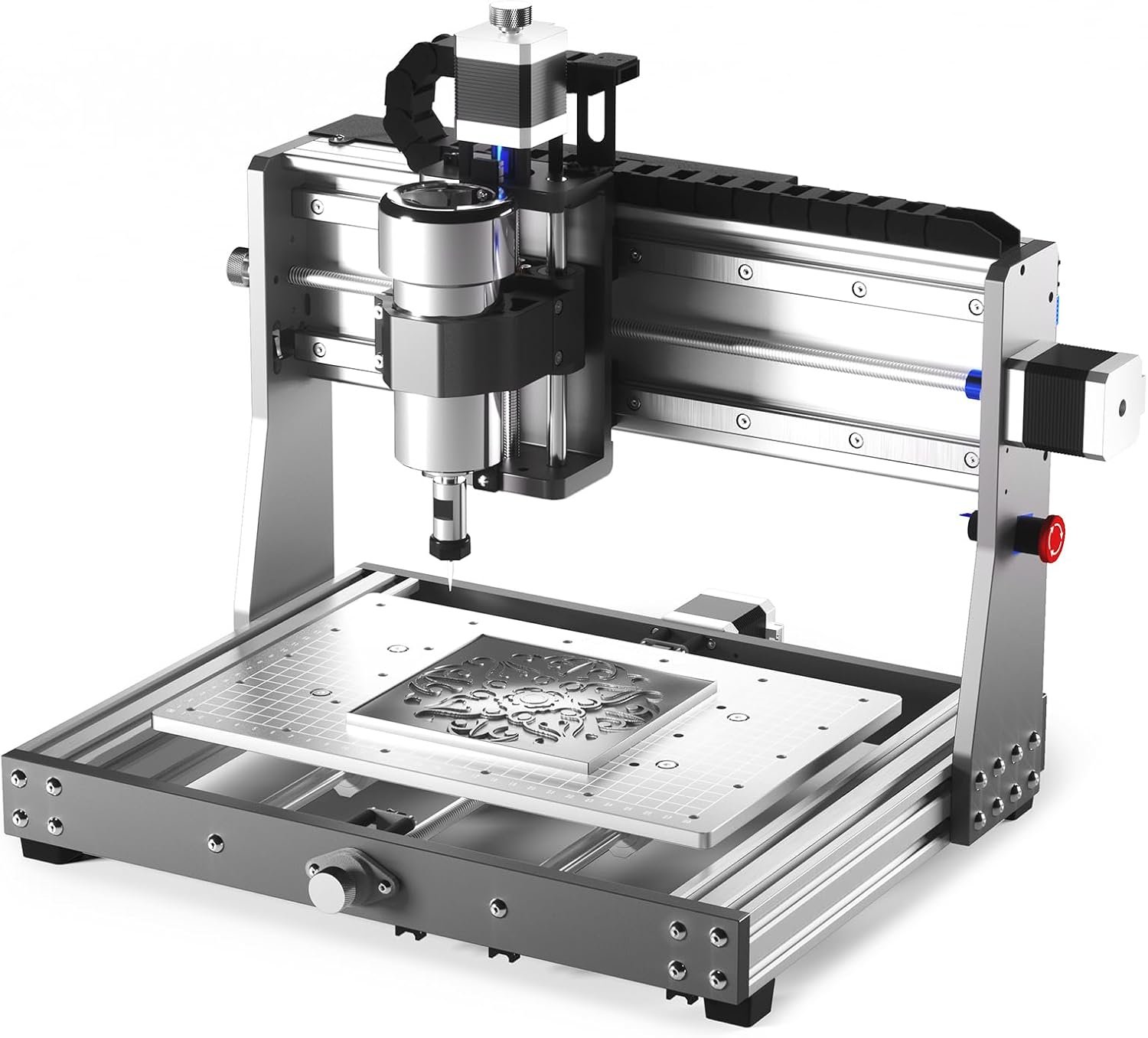

3020-PRO MAX V2 CNC Router Machine, Upgraded 3 Axis Engraver for Metal, Wood, Acrylic, PCB MDF, New Structure & Offline Controller & 6pcs Limit Switches, Working Area 11.8 x 8.1 x 3.1 inch

Description

Price: $499.00 - $449.10
(as of May 29, 2025 01:19:08 UTC – Details)

Product Description

1 Upgraded Structure

2 Support Trim Router

3 Redesigned Control Board

1 Aluminum Panel with Scale

2 20-Min Assembly

3 Upgraded Accessories

Comparison

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Price

$449.10$449.10

$599.00$599.00

$255.20$255.20

$764.10$764.10

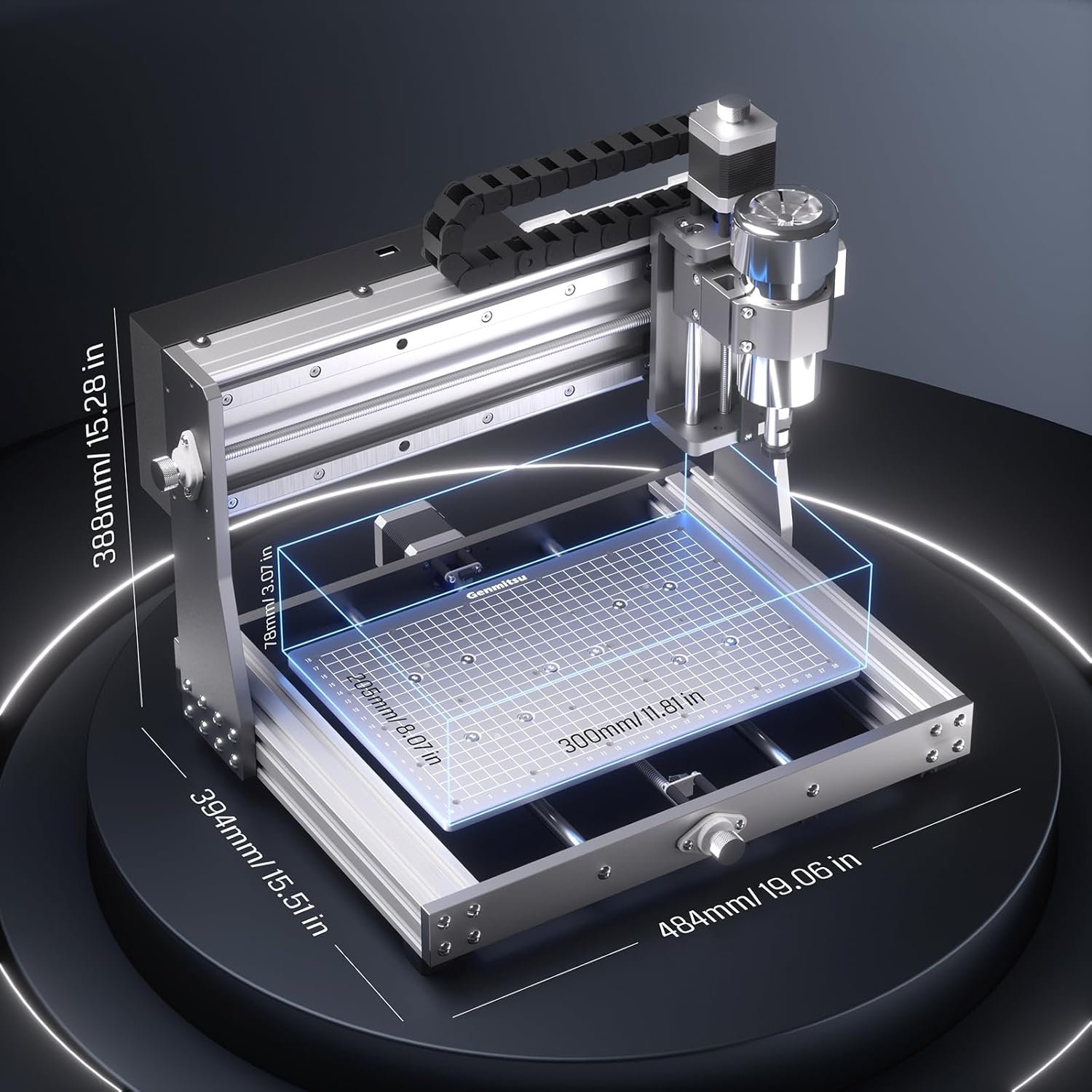

Effective Working Range

300 x 205 x 78mm

300 x 205 x 78mm

284 x 180 x 40mm

300 x 300 x 78mm

Stepper Motor

NEMA17 42mm

NEMA17 60mm

NEMA17 42mm

NEMA17 48mm

Spindle Mount

52mm

65mm

42mm

52mm

Extra Spindle Mount

X

69mm

X

65mm

Spindle Power

300W

710W

75W

300W

Max RPM

10000

30000

10000

10000

Running Accuracy

±0.1mm

±0.15mm

±0.1mm

±0.05mm

APP Support

✔

✔

✔

✔

Compatible Accessories
Y-Axis Extension Kit & Aluminum Spoilboard

This kit extends the Y-axis of your CNC to 460mm. When the extended aluminium spoilboard is installed, the effective working travel of Y-axis is 400mm.

MDF Grid Spoilboard

A MDF spoilboard is a disposable workbench that protects your CNC router machine and provides a flat and level surface for your workpiece.

KABA Fold CNC Enclosure

Pre-cut vent port access for dust collection. Don’t worry about dust flying everywhere while your CNC is working. Keeps your workshop clean.

Offline Control Module

Control your CNC Router or Laser Engraver without connecting a computer. Your machine could be placed wherever you want and run your projects untethered.

4 Pack Hold Down Clamp Kit

This clamp accommodates material up to 35mm (1.38”) thick and holds it firmly in position. It can hold a variety of materials for desktop CNC router machines.

52mm Dust Shoe

Equipped with nylon brush to maximize vacuum suction and help act as a dust sweep with high dust removal efficiency. Keep your machine and work area clean while cutting, drilling, and carving.

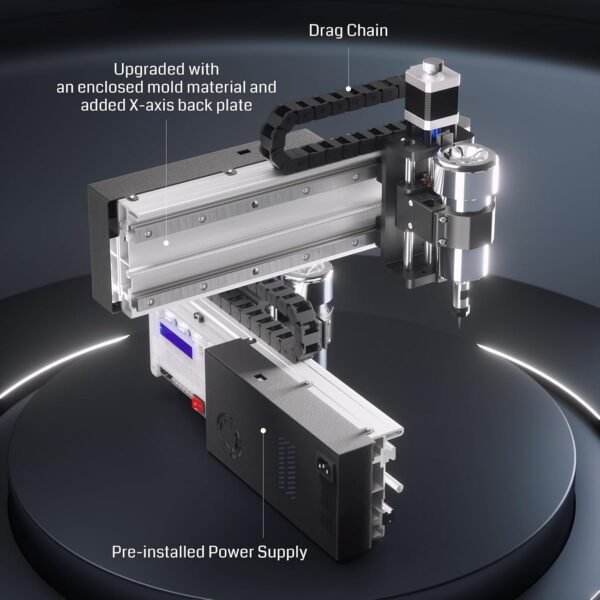

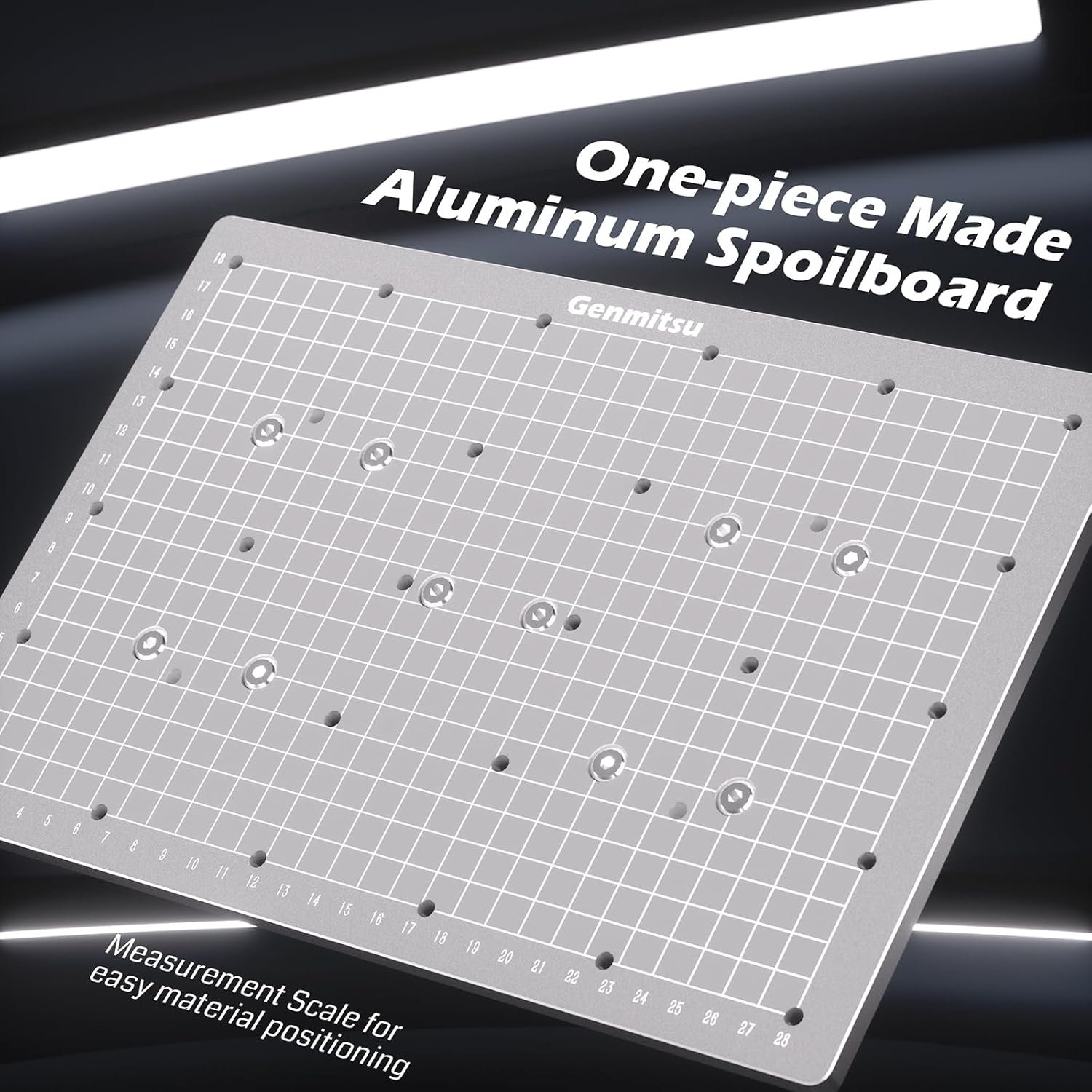

Upgraded Structure: The 3020-PRO MAX V2 builds upon the solid foundation of its original frame with its robust 4040 Y-axis profile and one-piece machined and molded aluminum spoilboard with measurement scale. Now featuring an upgraded dual steel X-axis guide rail with an enclosed mold material and a new X-axis back plate, resulting in a significantly more stable design.

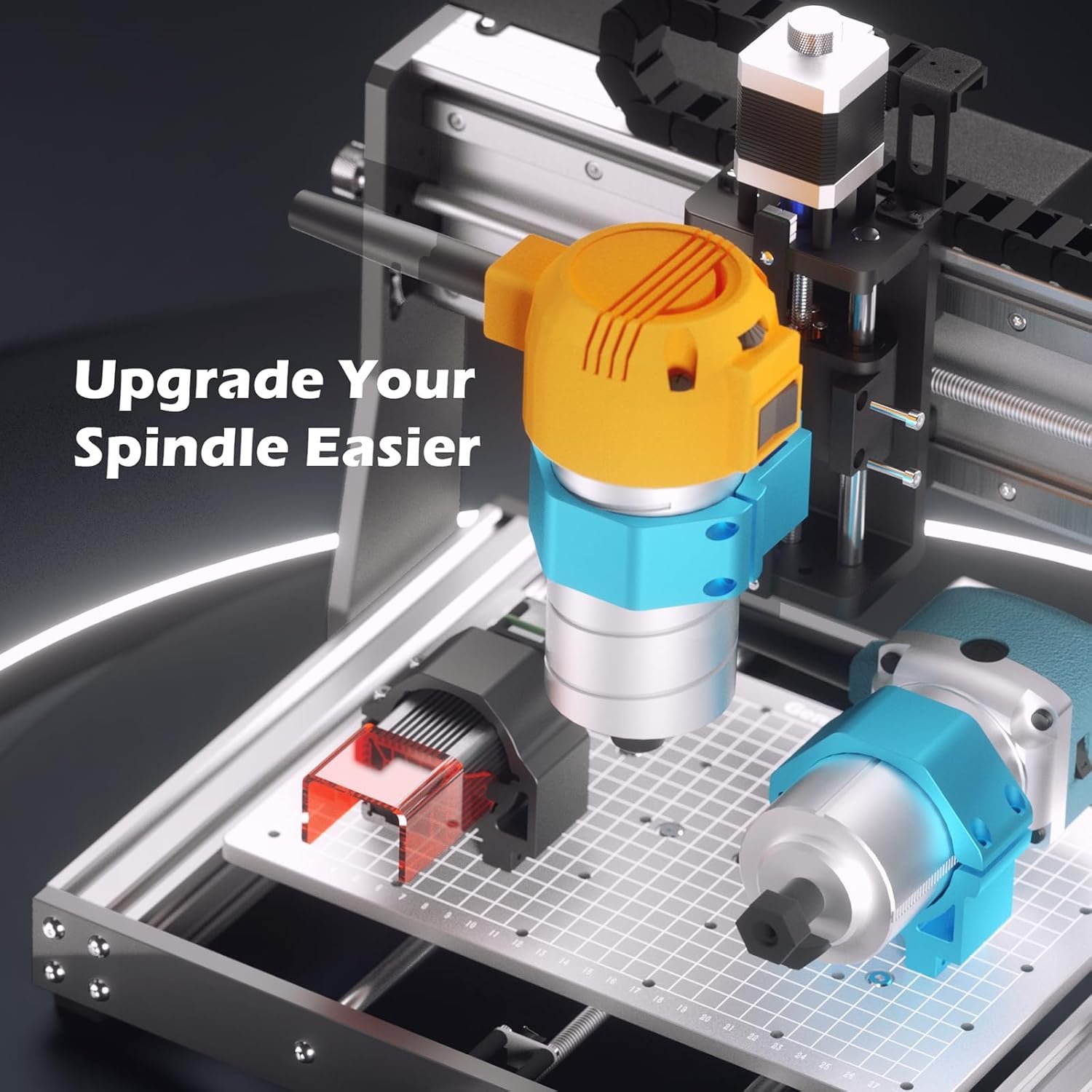

New Z Axis Assembly: The integrated molded Z-axis C-mount significantly improves stability compared to the previous design.The new Z-axis structure makes upgrading the spindle easier than before.

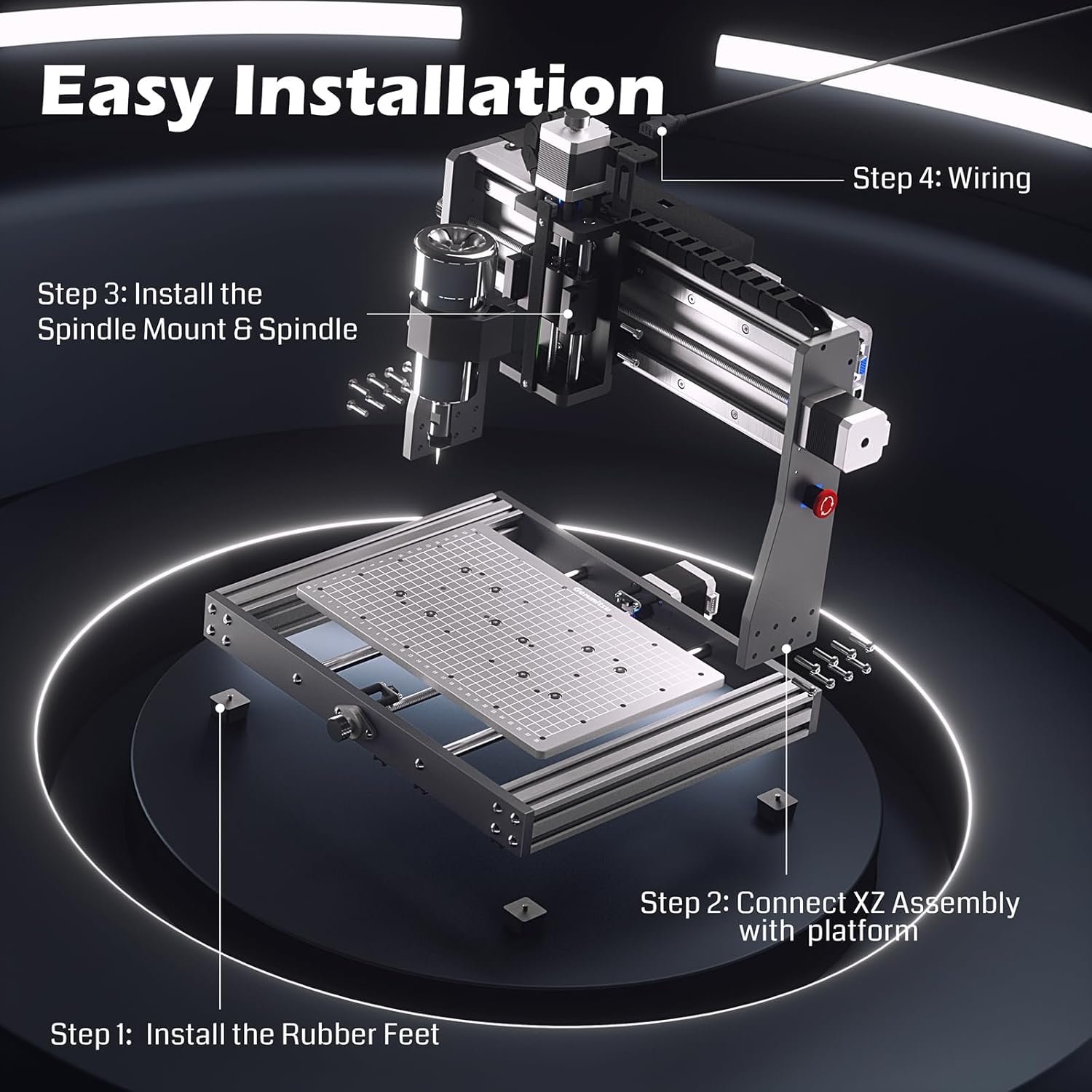

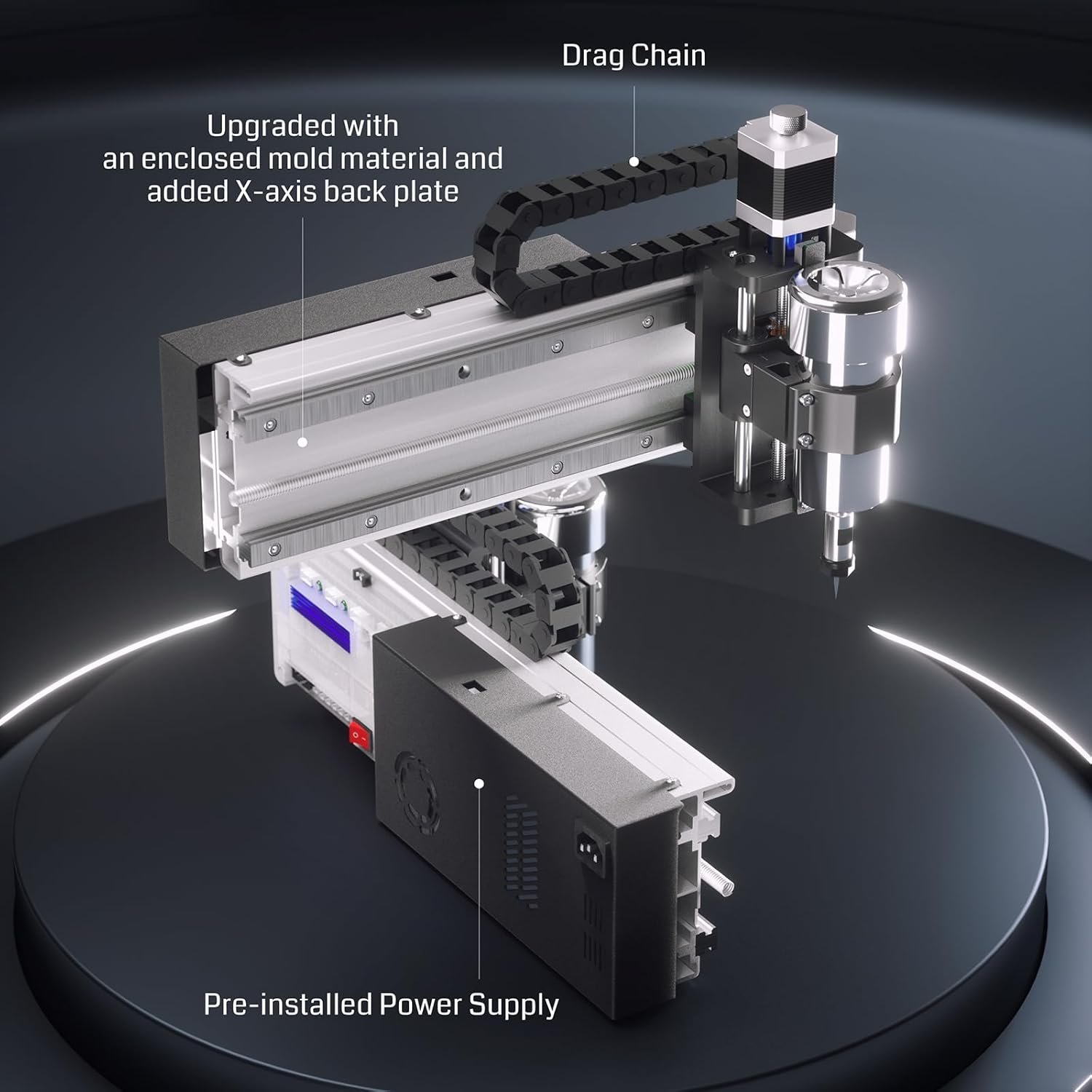

Convenient Setup: Optimized layout with the power supply conveniently installed on the backplate of the X-axis, maximizing workspace utilization. A pre-assembled XZ Axis Gantry module and Base Assembly dramatically saves you time. Pre-organized wiring and a pre-assembled drag chain save time and effort, requiring only final connections to the ports for a hassle-free CNC experience.
Expanded Functionality: While remaining based on open-source Grbl V1.1, the 3020-PRO MAX V2 CNC router has been upgraded with high-powered Toshiba TB6S109 drivers featuring 32-bit chips, resulting in improved performance. The upgrades include the addition of extended function ports, such as a dedicated 3 Pin Laser Port, Air Assistance Pump Port, and MPG Port, providing users with enhanced versatility and options for various applications.

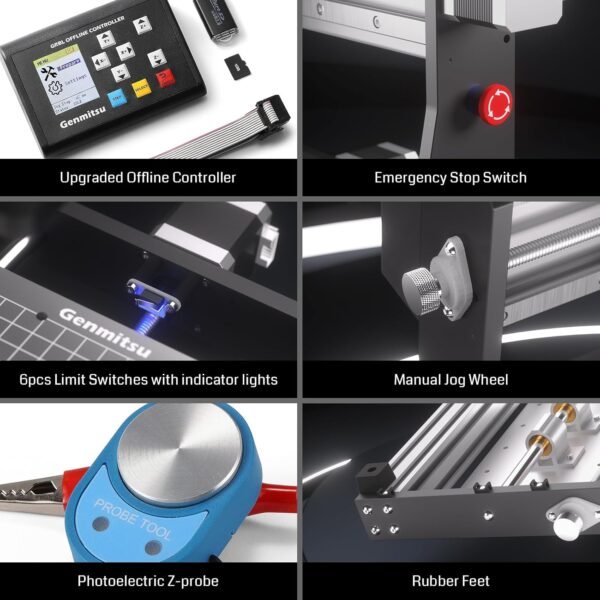

All-inclusive Package: The Genmitsu 3020-PRO MAX V2 CNC router offers a comprehensive solution with everything you need included in one package. It features upgraded components, including an upgraded offline controller, 6pcs XYZ axis limit switches, emergency stop switches, photoelectric Z-probe, and more, providing exceptional return on investment.
