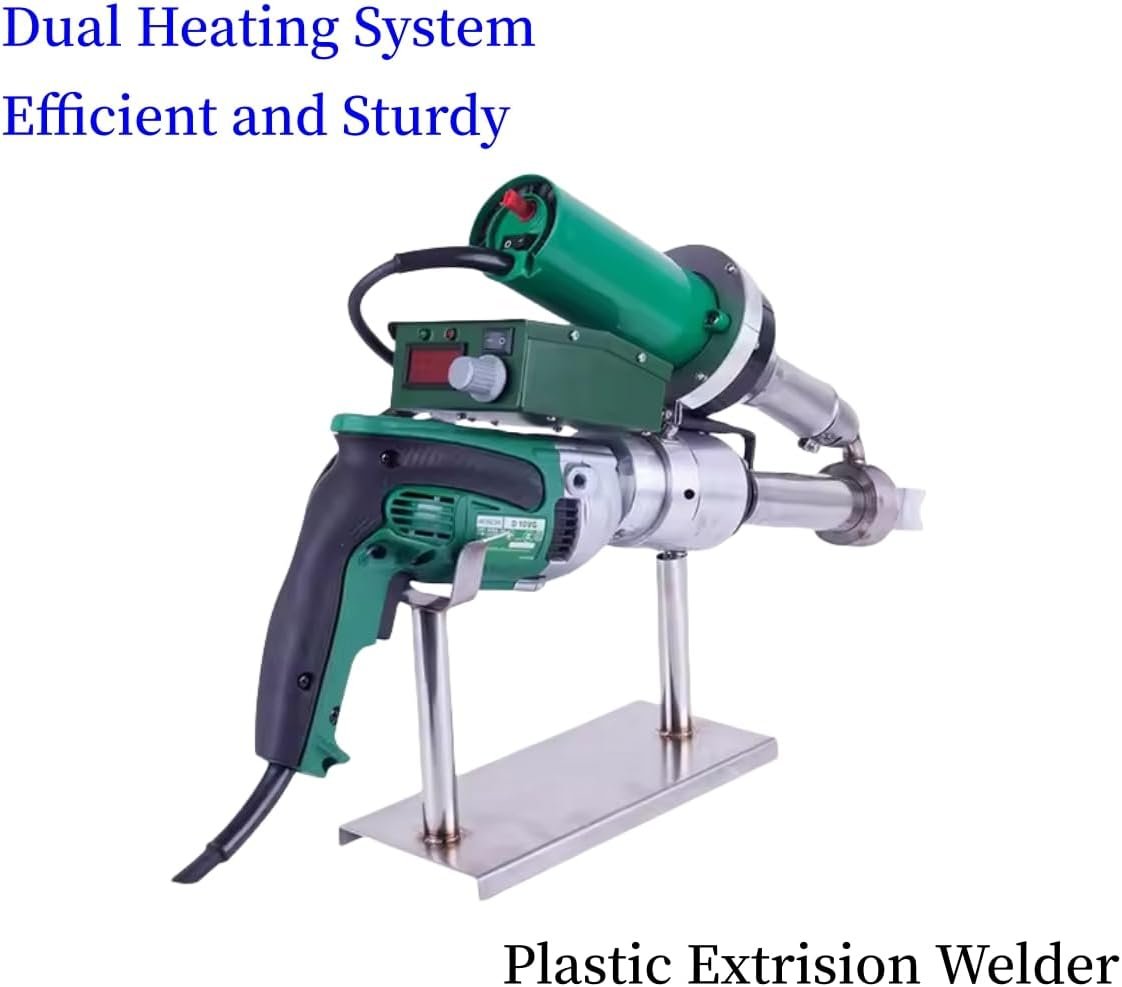

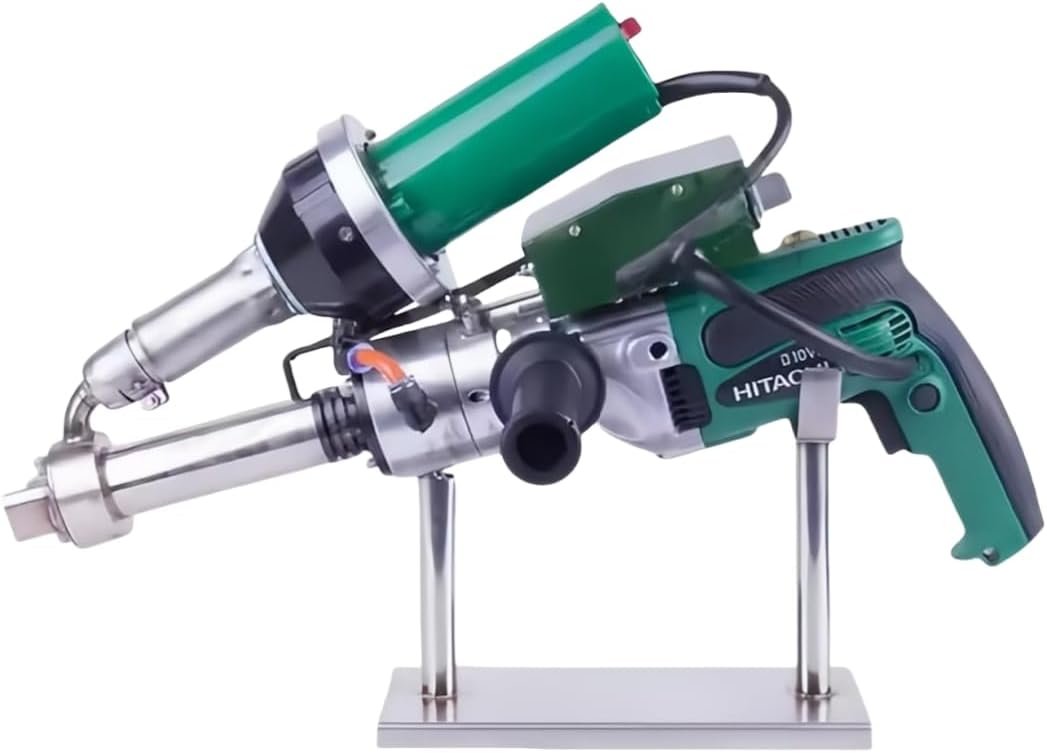

1600W Hand Extrusion Welder Gun Plastic Handheld Extruder Dual Heating System Welding Gun PP HDPE LDPE Pipe Welding Machine (220V Extruder)

Description

Price: $299.99 - $1,595.00
(as of May 30, 2025 10:42:51 UTC – Details)

Product Description

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.7 out of 5 stars 9

4.7 out of 5 stars 9

4.3 out of 5 stars 8

4.3 out of 5 stars 8

5.0 out of 5 stars 2

4.7 out of 5 stars 9

Price

$1,790.00$1,790.00 $1,595.00$1,595.00 $1,440.00$1,440.00 $1,560.00$1,560.00 $119.00$119.00 $199.00$199.00

Voltage
110V 220V 220V 220V X X

Power
1600W 1600W 3400W 3400W X X

Frequency
50/60Hz 50/60Hz 50/60Hz 50/60Hz X X

Welding Area
3mm&4mm 3mm&4mm 3mm&4mm 3mm&4mm 4mm 4mm

Usage
PE/PVC/PP Pipe PE/PVC/PP Pipe Plastic Welding Plastic Welding X X

Extruding Volume
2kg/h 2kg/h 1.5-2.2kg/h 2.4-3.4kg/h X X

Weight
6.0kg 6.0kg 6.4kg 6.4kg 5.0kg 5.0kg

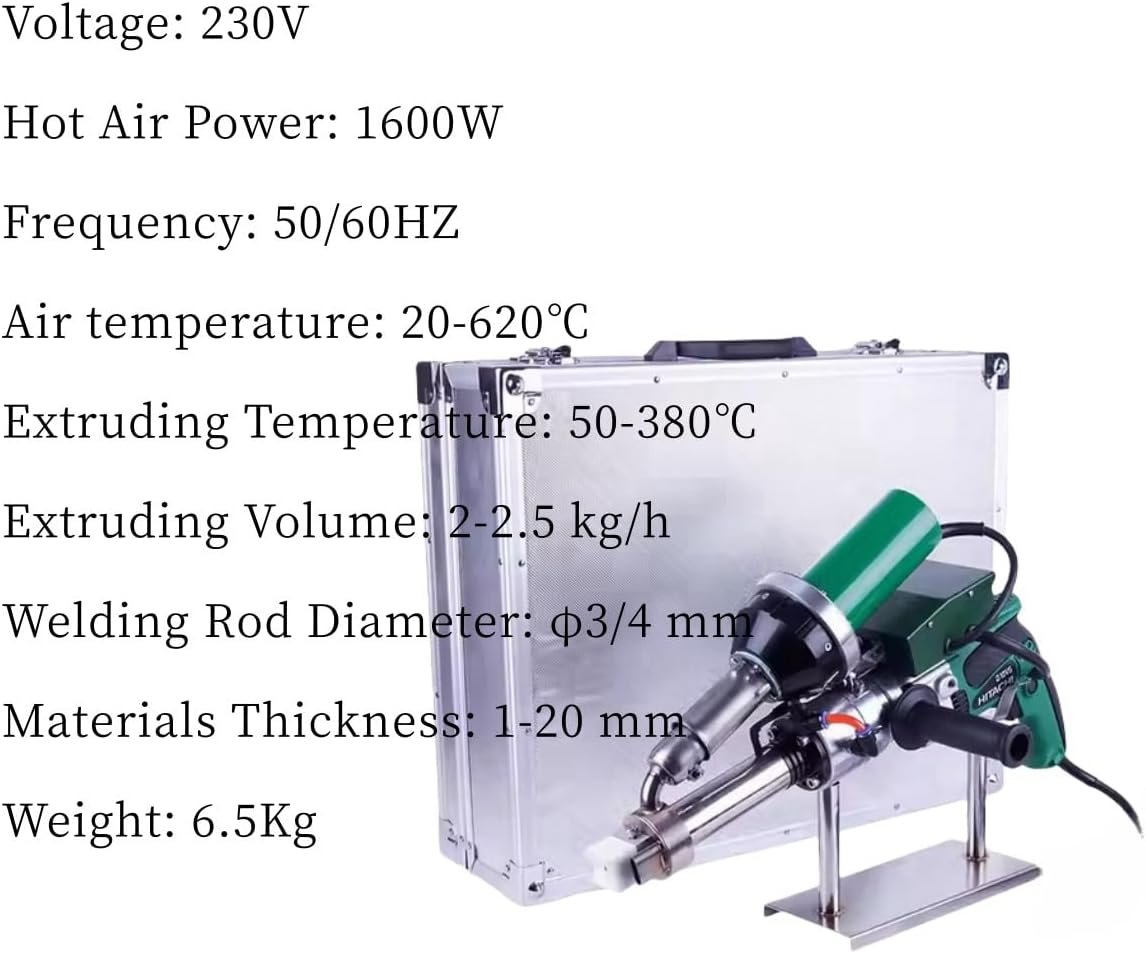

[Parameters]: Voltage: 220V; Frequency:50/60Hz; Power: 1600W hot air+800W Hitachi motor; Wind temperature: 20-600℃; Heating temperature when extruding: 200-380℃; Extruding volume: 2-2.5kg/h; Diameter of welding rod:Φ3.0mm-4.0mm; Welding thickness:1-20mm; Usage: PVC tarpaulin welding extruder.
[Product Advantages]: The Hand Held Plastic Extrusion Welder is used for welding PE,PP,PVDF and so on. This tool is of light weight,stable performance,convenient operation,large-amount extrusion and high efficiency, the advantage is for welding narrow gap and corners where is not easy to reach.

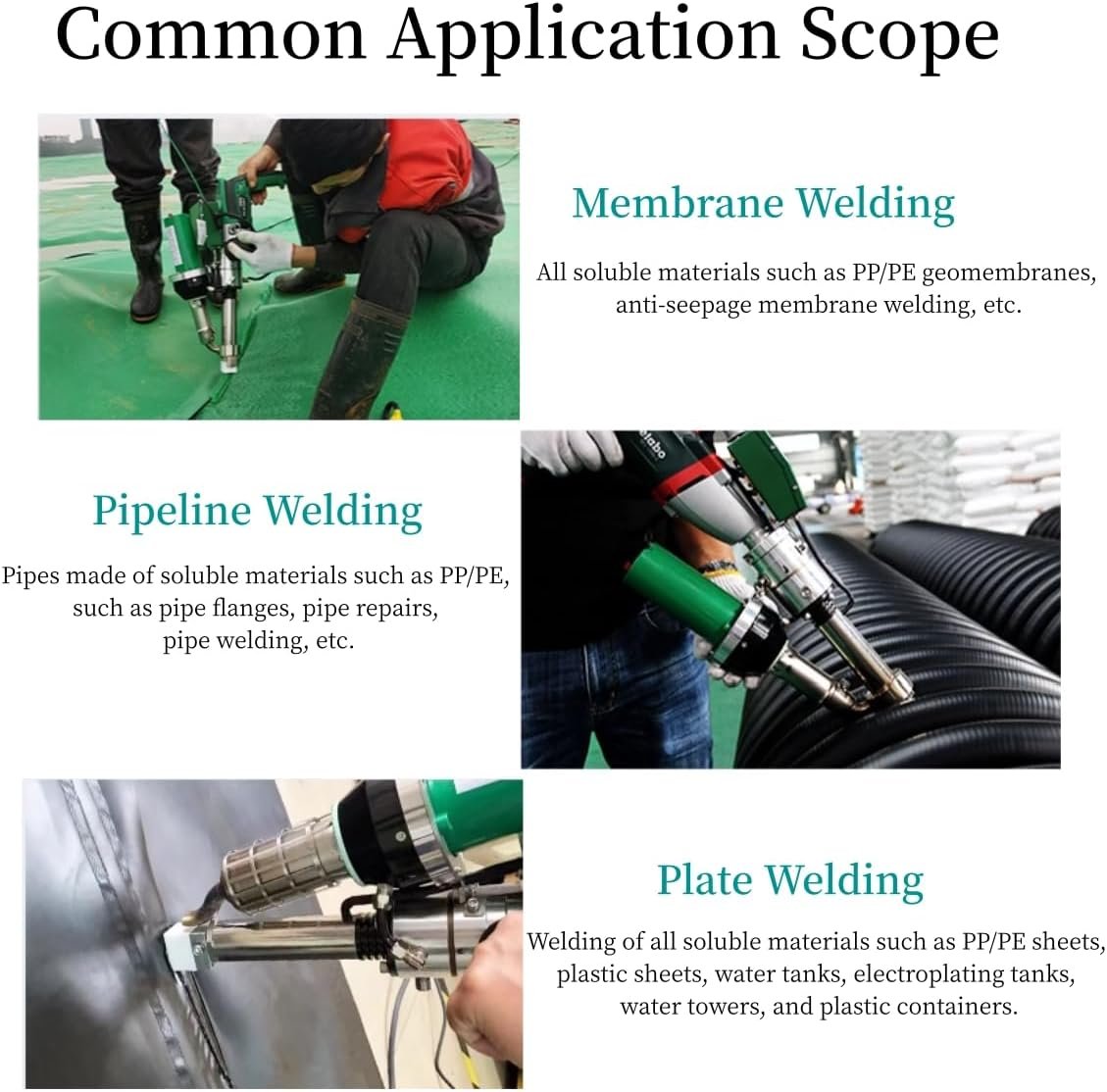

[Wide Application]: Hand held Plastic Extrusion Welding Machine is used for welding PE, PP, PVC, PVDF, HDPE and so on, for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover and for polypropylene and polyethylene pipes.

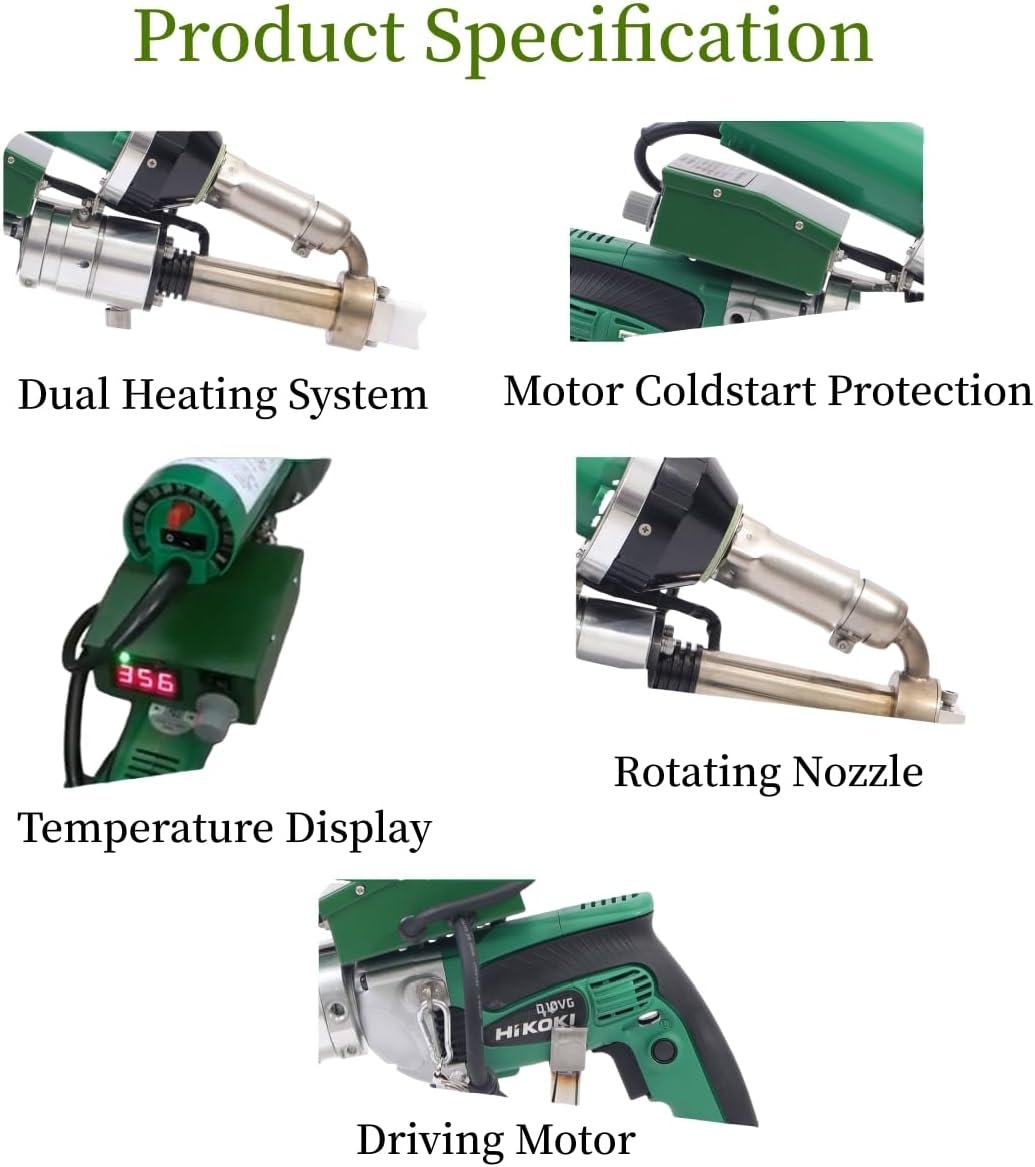

[Product Features]: Have a digital display controller to show welding rod temperature in real time; 360-degree rotating welding head; the motor cold start protection; Independent heating systems of welding rod and parent materials-800w heater for welding rod and 1600w air blower for parent materials; 800w Japan Hitachi extruding auger.
[Tips & Warranty]: One year warranty and to protect the machine, please: Extrude all welding rods which inside the cylinder (when the motor voice getting lighter that means extrude completely), and clean out the welding materials that on the air outlet and adjust the hot air gun to cold wind and cooling the heating element at least 5 minutes before shutdown.
